All data is our best estimate based on the information provided online
2000 SANTA CRUZ SUPER 8
| MODEL VERSION YEARS | 2000- |
|---|---|
| TIRE SIZE | 26 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 40 |
| SHOCK SIZE | 7.875 x 2.25 |
| TRAVEL MM | 203 |
| UPPER REDUCER | 42.0 x 8.0 |
| LOWER REDUCER | 15.75 x 8.0 |
| LINKAGE | SINGLE PIVOT (LINEAR) |
| AVERAGE LEVERAGE | 3.55 |
| STARTING LEVERAGE | 3.5 |
| SAG POINT LEVERAGE | 3.57 |
| ENDING LEVERAGE | 3.9 |
| PROGRESSION % | -11.4 |

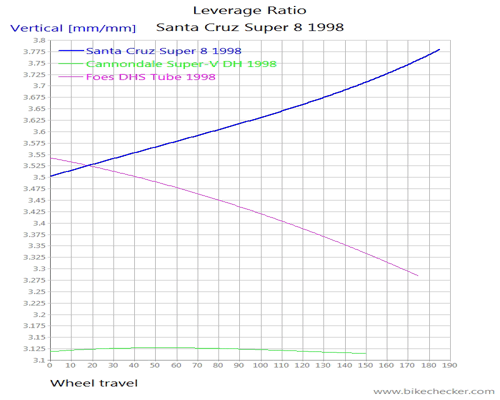

| LEVERAGE CURVE | HL
|

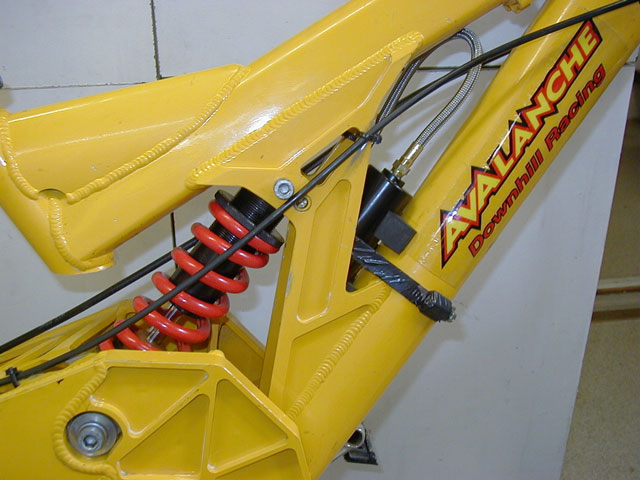

| Installed Pictures | Installed Views
|
| SHOCK TUNE | REGRESSIVE HL |
| OEM SHOCK | FOX VANILLA RC |
| UPGRADE OPTION | AVALANCHE DHS |
| SUGGESTED SHOCK SPRING | Not Coil Compatible |
| HEAD TUBE ANGLE | 63.6 |
| RECOMMENDED FORK TRAVEL | 200 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | Fox 40 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX BOXXER HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 30,35,40,45,50,50, |
| COMMENTS | UPPER HOLE MORE LINEAR, 63.6/63.3 |
| COMMENTS | LOWER HOLE MORE PROGRESSIVE(softer initially same at end) |
