2003 BALFA 2-Step DH
| MODEL VERSION YEARS | 2003- |
|---|---|
| TIRE SIZE | 26 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 43 |
| SHOCK SIZE | 7.875 x 2.25 |
| TRAVEL MM | 180 |
| UPPER REDUCER | 22.0X6.0 |
| LOWER REDUCER | 22.0X6.0 |
| LINKAGE | DW (SPLIT PIVOT) |
| AVERAGE LEVERAGE | 3.15 |
| STARTING LEVERAGE | 3.5 |
| SAG POINT LEVERAGE | 3.25 |
| ENDING LEVERAGE | 2.8 |
| PROGRESSION % | 20.00 |
| LEVERAGE CURVE | PBLE
|

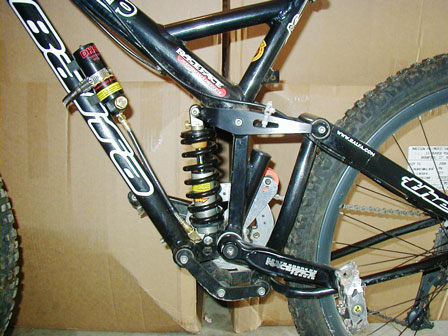

| Installed Pictures | Installed Views
|
| SHOCK TUNE | PROGRESSIVE PBLE |
| OEM SHOCK | FOX VANILLA RC |
| UPGRADE OPTION | AVALANCHE DHS |
| SUGGESTED SHOCK SPRING | 550,600,700,750,800,850, |
| HEAD TUBE ANGLE | 67.5 |
| RECOMMENDED FORK TRAVEL | 180 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 30,35,35,40,45,50, |
| COMMENTS | Renamed the HD in 2004 because of lack of DH travel, 22 x 6 upper and btm with bent rocker |
