Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online

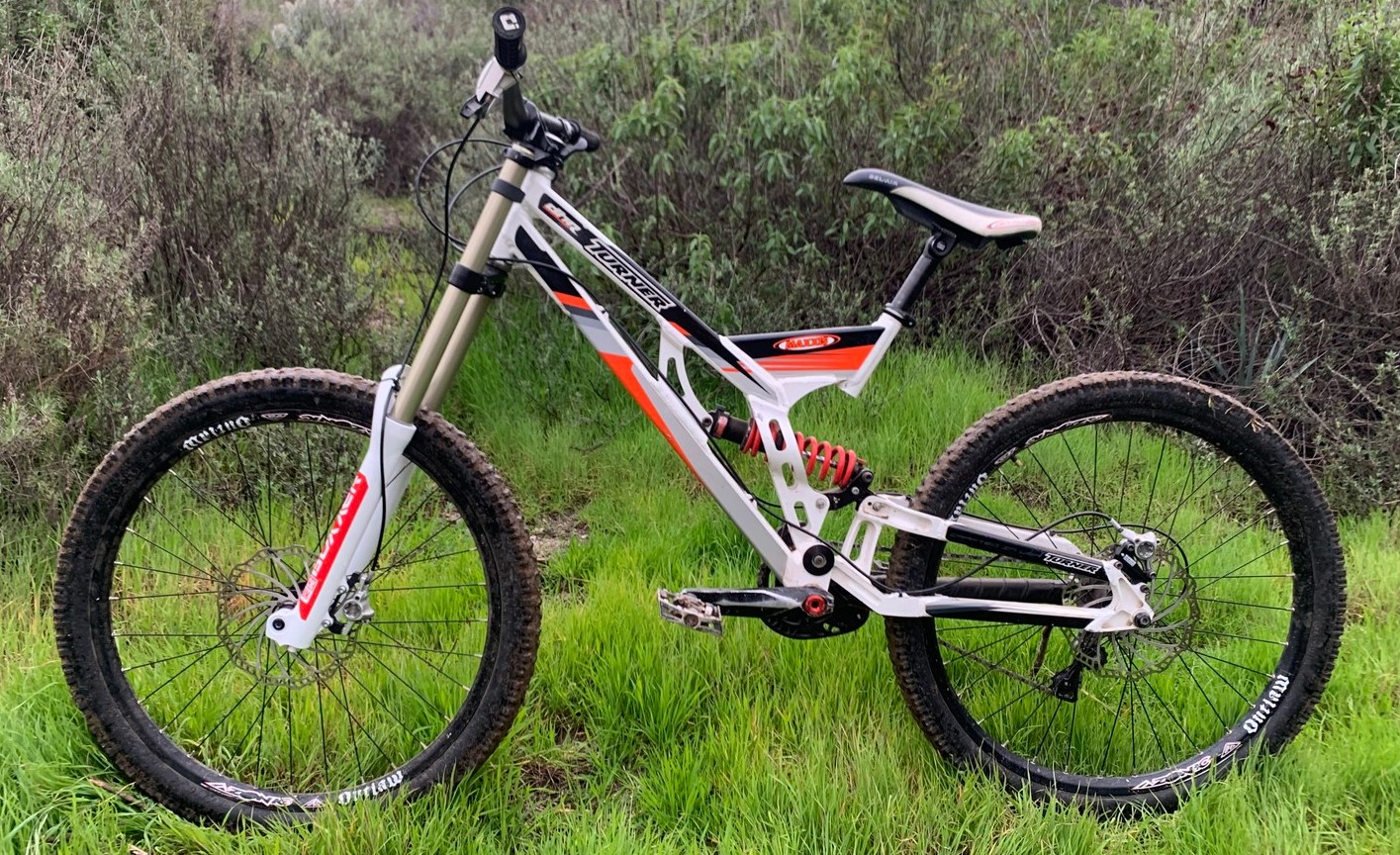

2004 TURNER DHR
| MODEL VERSION YEARS | 2004- |
|---|---|
| TIRE SIZE | 26 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 40 |
| SHOCK SIZE | 9.5 x 3.00 |
| TRAVEL MM | 216 |
| UPPER REDUCER | 22.0 x 6.0 |
| LOWER REDUCER | 22.0 x 6.0 |
| LINKAGE | SINGLE PIVOT LINKAGE DRIVEN |
| AVERAGE LEVERAGE | 2.83 |
| STARTING LEVERAGE | 4.3 |
| SAG POINT LEVERAGE | 2.95 |
| ENDING LEVERAGE | 2.58 |
| PROGRESSION % | 40.0 |
| LEVERAGE CURVE | HPL
|

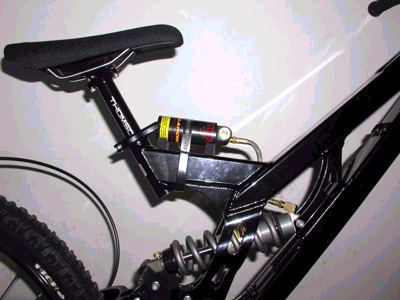

| Installed Pictures | Installed Views
|
| SHOCK TUNE | PROGRESSIVE HPL |
| OEM SHOCK | ROMIC |
| UPGRADE OPTION | AVALANCHE DHS |
| SUGGESTED SHOCK SPRING | 350,400,450,450,500,550, |
| HEAD TUBE ANGLE | |
| RECOMMENDED FORK TRAVEL | 200 |
| OEM FORK | ROCKSHOX 32 BOXXER WC |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 40 HYBRID OPEN BATH |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 30,35,40,45,50,50, |
| COMMENTS | best estimate for leverage, run sag around 32% |
| COMMENTS |
