Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online

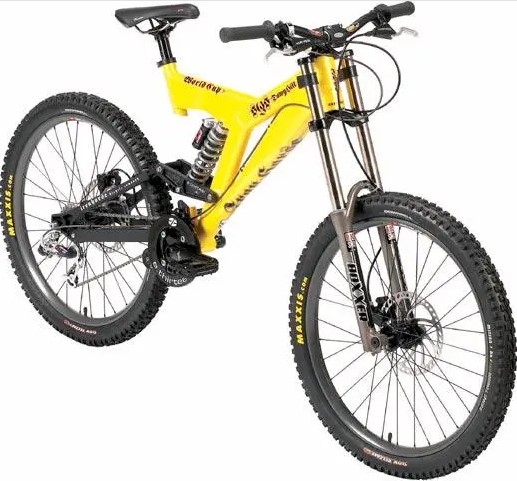

2004 IRONHORSE SGS World Cup
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 26 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 34 |
| SHOCK SIZE | 8.75 x 2.75 |
| TRAVEL MM | 203 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | FOUR BAR (SLIGHT PROGRESSION) |
| AVERAGE LEVERAGE | 2.91 |
| STARTING LEVERAGE | 3.1 |
| SAG POINT LEVERAGE | 3.0 |
| ENDING LEVERAGE | 2.7 |
| PROGRESSION % | 12.9 |
| LEVERAGE CURVE | PL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | 4-BAR PL |
| OEM SHOCK | 5TH ELEMENT 5-WAY |
| UPGRADE OPTION | 5TH ELEMENT 5-WAY |
| SUGGESTED SHOCK SPRING | Not Coil Compatible |
| HEAD TUBE ANGLE | |
| RECOMMENDED FORK TRAVEL | 203 |
| OEM FORK | MARZ 888 35 RCV |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX BOXXER RC |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 25,30,30,35,40,40, |
| COMMENTS | Best estimate leverage |
| COMMENTS |
