2007 CANFIELD Balance
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 34 |
| SHOCK SIZE | 200 x 51 |
| TRAVEL MM | 157 |
| UPPER REDUCER | 22.0 x 8.0 |
| LOWER REDUCER | 22.0 x 8.0 |
| LINKAGE | FLOATING PIVOT UPPER/LOWER |
| AVERAGE LEVERAGE | 3.08 |
| STARTING LEVERAGE | 3.2 |
| SAG POINT LEVERAGE | 2.9 |
| ENDING LEVERAGE | 2.35 |
| PROGRESSION % | 26.6 |

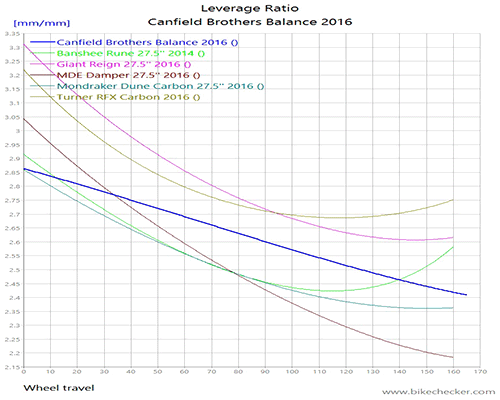

| LEVERAGE CURVE | HPL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE HPL |
| OEM SHOCK | FOX DHX 5.0 |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX VANRC |
| UPGRADE OPTION | AVALANCHE WOODIE |
| SUGGESTED SHOCK SPRING | 500,600,650,700,800,850, |
| HEAD TUBE ANGLE | |
| RECOMMENDED FORK TRAVEL | 160 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,45,50,55,60, |
| COMMENTS | |
| COMMENTS |
