Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online

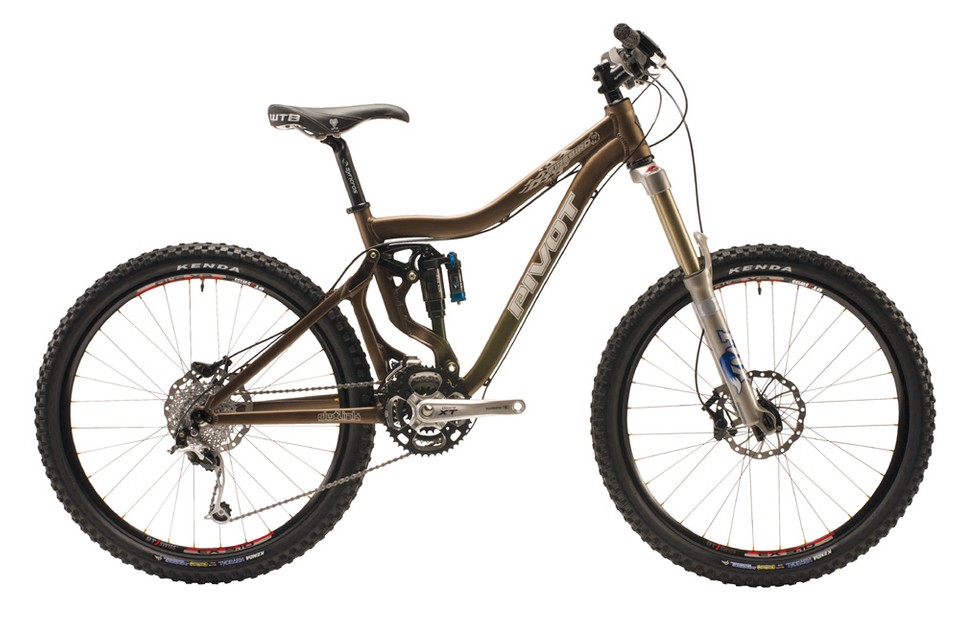

2009 PIVOT Firebird
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 26 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 37 |
| SHOCK SIZE | 8.5 x 2.50 |
| TRAVEL MM | 167 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | DW (SPLIT PIVOT) |
| AVERAGE LEVERAGE | 2.63 |
| STARTING LEVERAGE | 3.3 |
| SAG POINT LEVERAGE | 2.87 |
| ENDING LEVERAGE | 2.25 |
| PROGRESSION % | 31.8 |

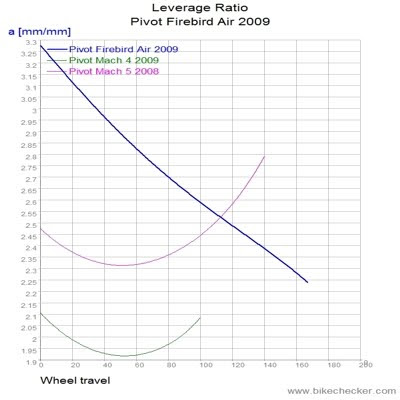

| LEVERAGE CURVE | HPL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE HPL |
| OEM SHOCK | FOX FLOAT RP23 |
| OEM SHOCK | FOX DHX AIR 90 DEG 2 POS |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | MONARCH PLUS RC3 DEBON AIR |
| SUGGESTED SHOCK SPRING | 400,450,500,550,600,650, |
| HEAD TUBE ANGLE | 67 |
| RECOMMENDED FORK TRAVEL | 170 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 30,35,40,40,45,50, |
| COMMENTS | |
| COMMENTS |
