Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online

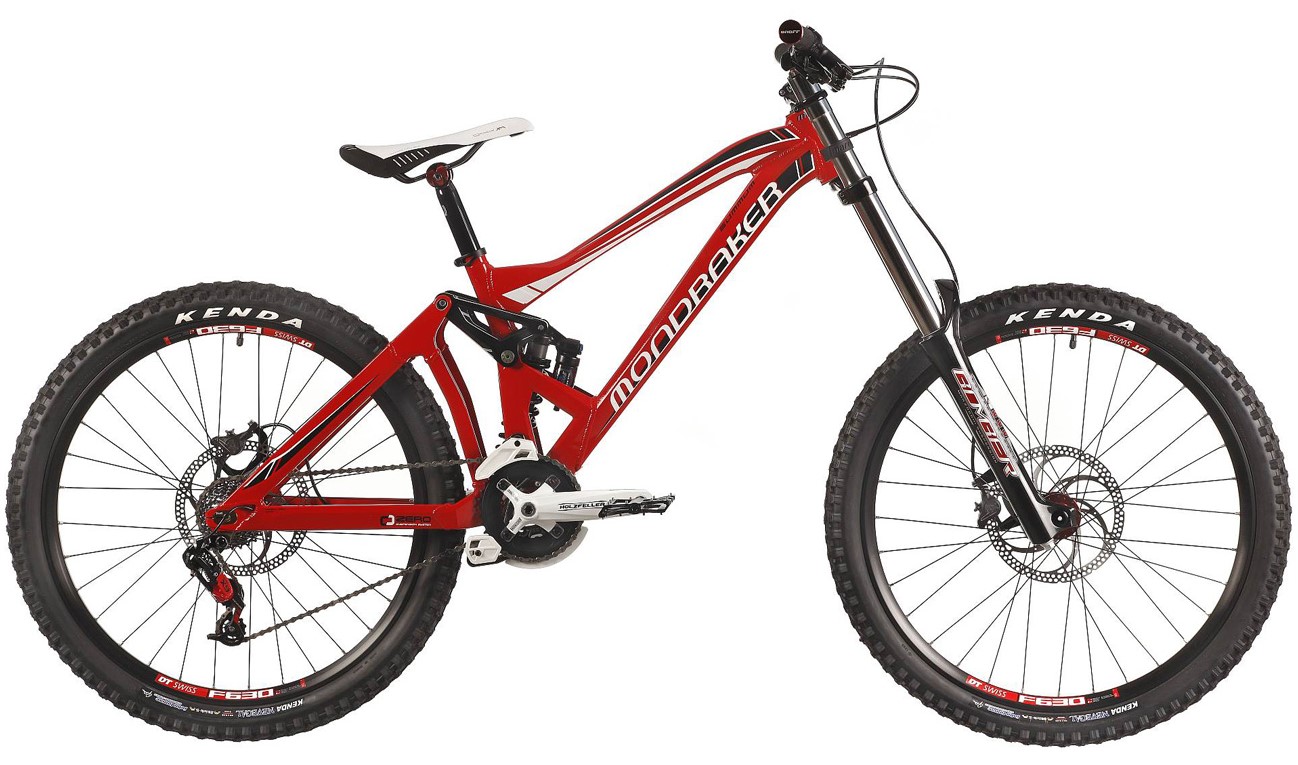

2011 MONDRAKER Summum
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 27.5 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 35 |
| SHOCK SIZE | 9.5 x 3.00 |
| TRAVEL MM | 205 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | FLOATING PIVOT UPPER/LOWER |
| AVERAGE LEVERAGE | 2.69 |
| STARTING LEVERAGE | 3.15 |
| SAG POINT LEVERAGE | 2.88 |
| ENDING LEVERAGE | 2.25 |
| PROGRESSION % | 28.6 |
| LEVERAGE CURVE | PL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PL |
| OEM SHOCK | FOX VANRC |
| UPGRADE OPTION | AVALANCHE WOODIE |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX VANRC |
| SUGGESTED SHOCK SPRING | 300,350,400,450,500,500, |
| HEAD TUBE ANGLE | 63 |
| RECOMMENDED FORK TRAVEL | 203 |
| OEM FORK | MARZ 888 38 RC3 EVO TI |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 40 HYBRID OPEN BATH |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 25,30,35,35,40,45, |
| COMMENTS | Best estimate for leverage |
| COMMENTS |
