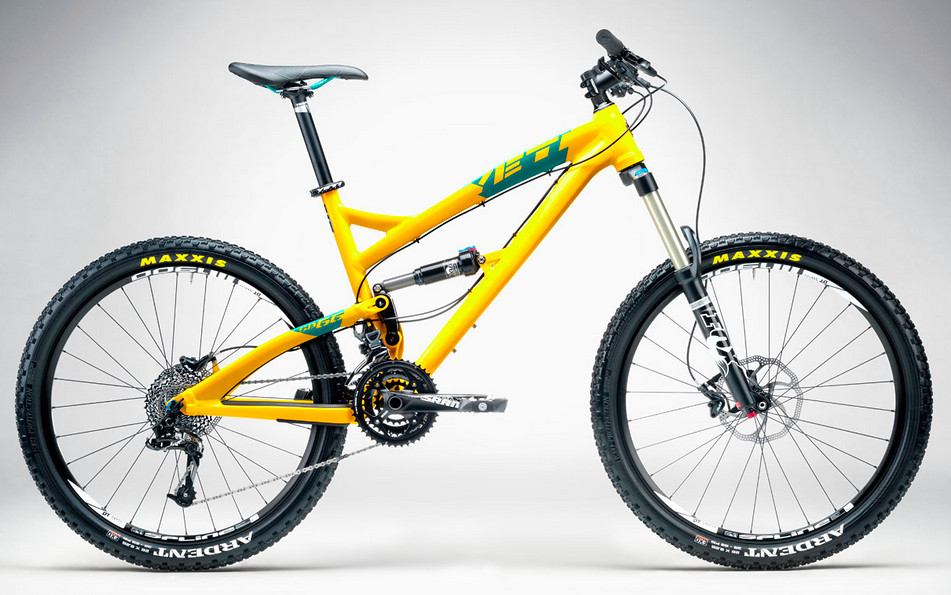

2014 YETI SB66
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 27.5 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 34 |
| SHOCK SIZE | 8.5 x 2.50 |
| TRAVEL MM | 152 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | LINKAGE DRIVEN FOUR BAR |
| AVERAGE LEVERAGE | 2.39 |
| STARTING LEVERAGE | 2.38 |
| SAG POINT LEVERAGE | 2.42 |
| ENDING LEVERAGE | 2.34 |
| PROGRESSION % | 1.7 |

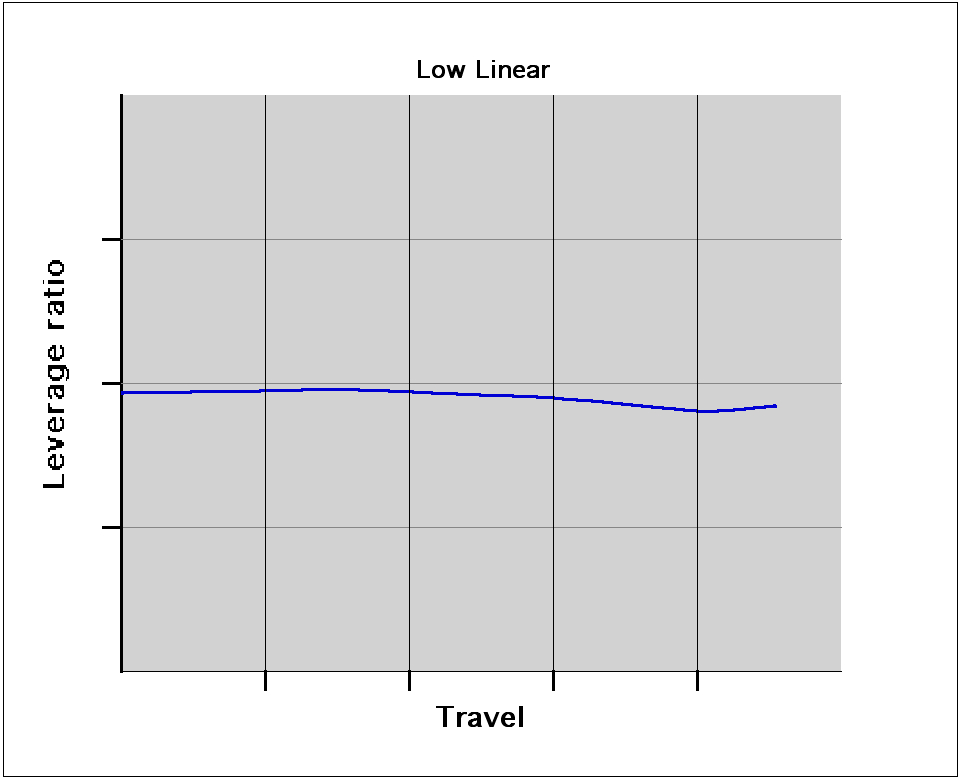

| LEVERAGE CURVE | LL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | LINEAR LL |
| OEM SHOCK | MONARCH PLUS RC3 DEBON AIR |
| UPGRADE OPTION | FOX FLOAT DPS |
| UPGRADE OPTION | FOX FLOAT CTD |
| SUGGESTED SHOCK SPRING | Not Coil Compatible |
| HEAD TUBE ANGLE | 67 |
| RECOMMENDED FORK TRAVEL | 160 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,45,50,55,60, |
| COMMENTS | 2.4 - 2.3 TO 1 |
| COMMENTS |
