2014 TRANSITION TR500
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 27.5 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 40 |
| SHOCK SIZE | 9.5 x 3.00 |
| TRAVEL MM | 200 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | LINKAGE DRIVEN FOUR BAR |
| AVERAGE LEVERAGE | 2.62 |
| STARTING LEVERAGE | 3.05 |
| SAG POINT LEVERAGE | 3.0 |
| ENDING LEVERAGE | 2.35 |
| PROGRESSION % | 23.0 |

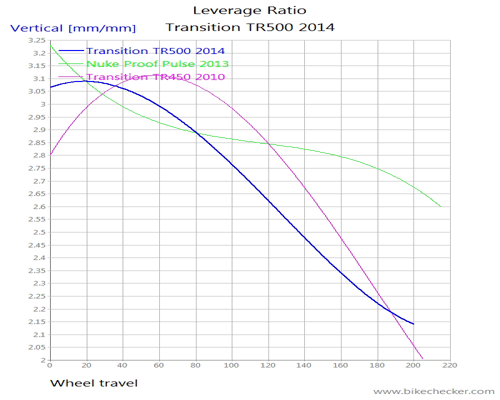

| LEVERAGE CURVE |
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | DW/VP |
| OEM SHOCK | ROCKSHOX KAGE |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | AVALANCHE WOODIE |
| SUGGESTED SHOCK SPRING | 300,350,400,450,450,500, |
| HEAD TUBE ANGLE | |
| RECOMMENDED FORK TRAVEL | 203 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | Fox 40 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX BOXXER HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 30,30,35,40,40,45, |
| COMMENTS | slight regression/ progression in initial stroke |
| COMMENTS |
