Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online

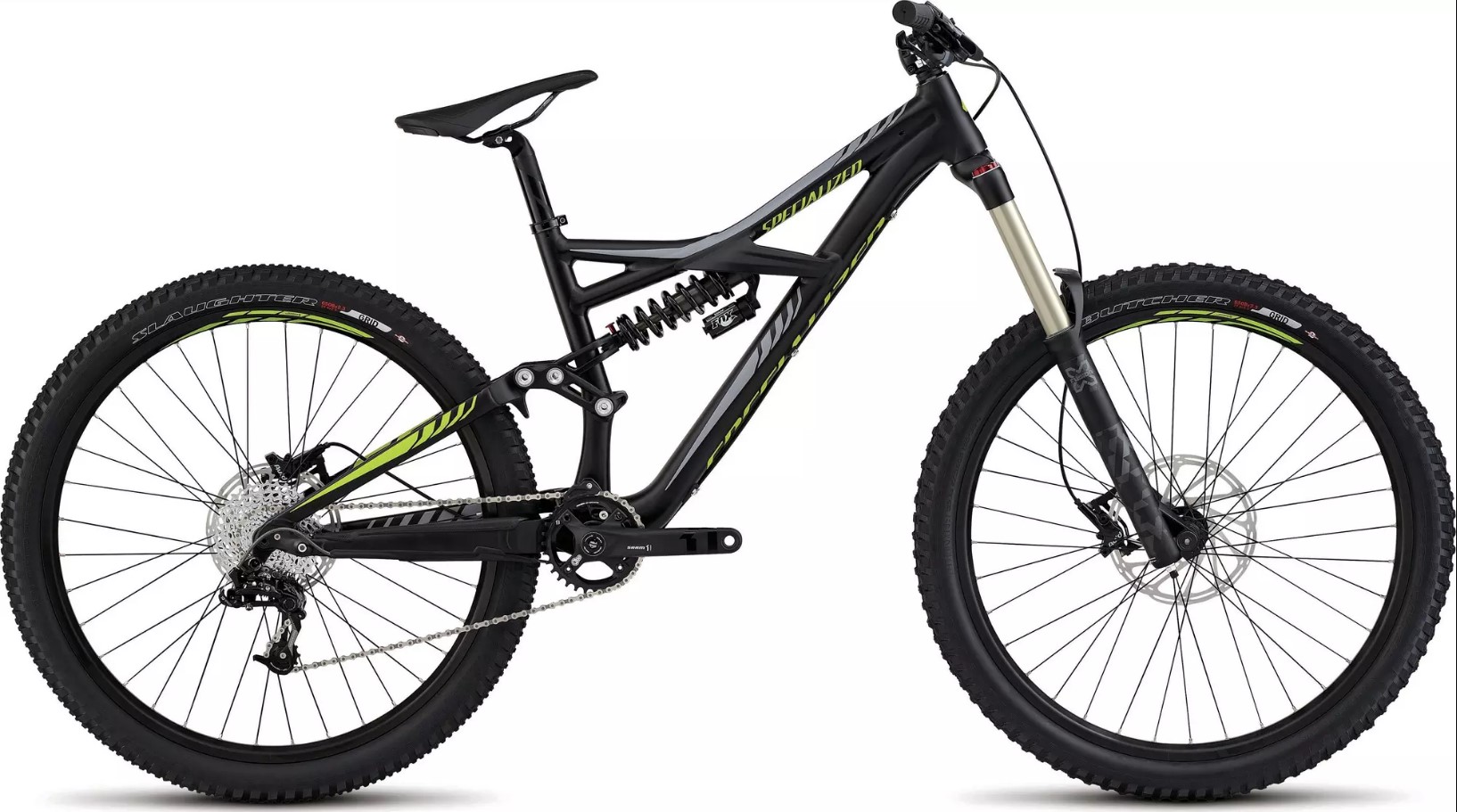

2015 SPECIALIZED Enduro Evo
| MODEL VERSION YEARS | 2013-2015 |
|---|---|
| TIRE SIZE | 27.5 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 40 |
| SHOCK SIZE | 8.75 x 2.5 |
| TRAVEL MM | 180 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | HORST FOUR BAR (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.83 |
| STARTING LEVERAGE | 3.2 |
| SAG POINT LEVERAGE | 2.95 |
| ENDING LEVERAGE | 2.85 |
| PROGRESSION % | 10.94 |

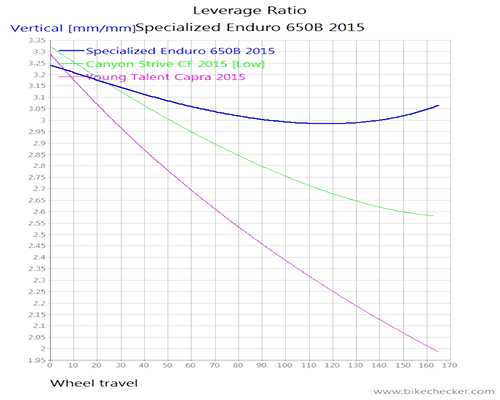

| LEVERAGE CURVE | HL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE/LINEAR HL |
| OEM SHOCK | FOX VANRC |
| UPGRADE OPTION | BOMBER CR |
| SUGGESTED SHOCK SPRING | Not Coil Compatible |
| HEAD TUBE ANGLE | 64.5 |
| RECOMMENDED FORK TRAVEL | 180 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX ZEB HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,40,45,50,55, |
| COMMENTS | best estimate for EVO leverage |
| COMMENTS |
