Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online

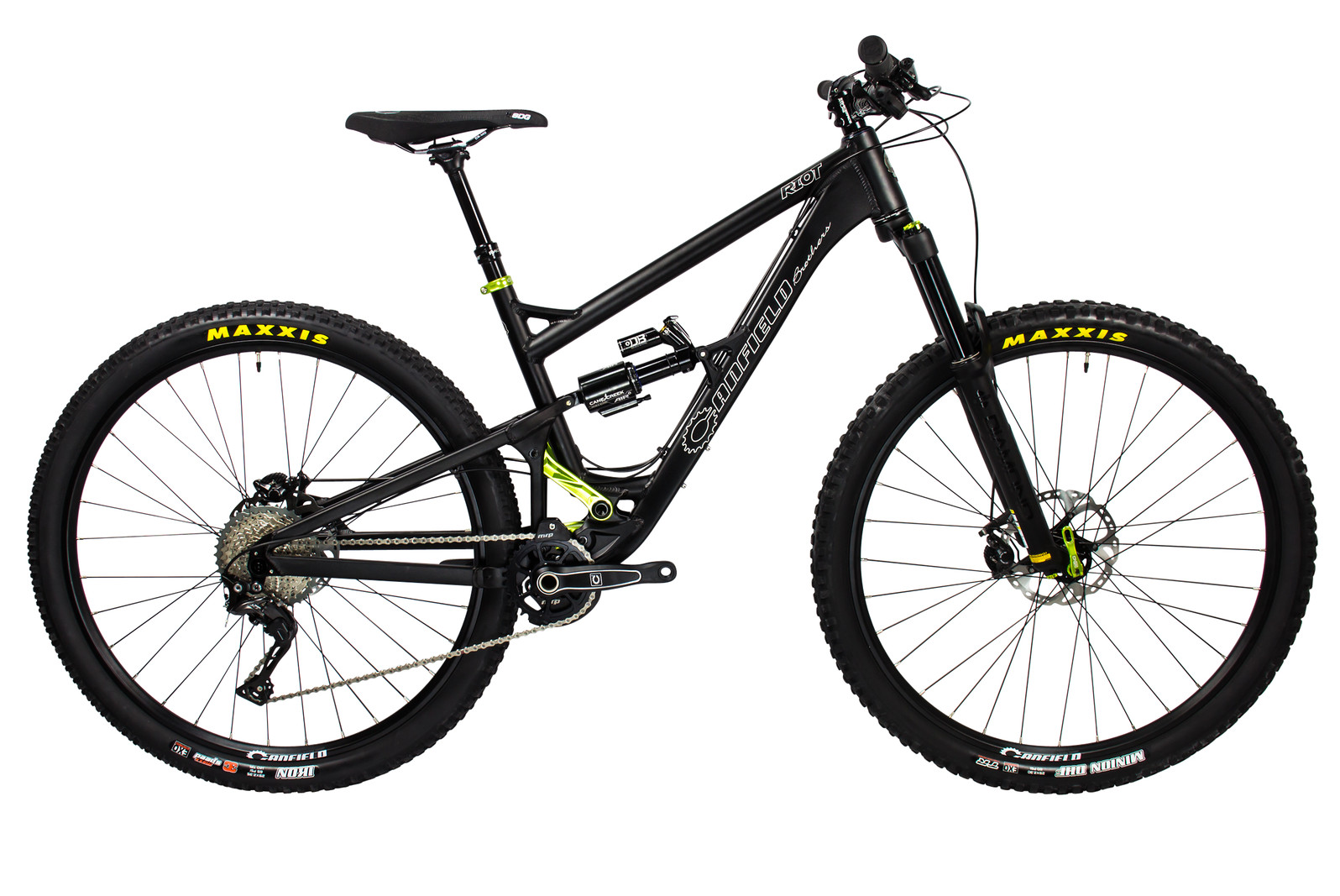

2015 CANFIELD Riot
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 32 |
| SHOCK SIZE | 200 x 57 |
| TRAVEL MM | 140 |
| UPPER REDUCER | 22.0 x 8.0 |
| LOWER REDUCER | 36.0 x 8.0 |
| LINKAGE | FLOATING PIVOT UPPER/LOWER |
| AVERAGE LEVERAGE | 2.46 |
| STARTING LEVERAGE | 2.64 |
| SAG POINT LEVERAGE | 2.53 |
| ENDING LEVERAGE | 2.32 |
| PROGRESSION % | 12.1 |

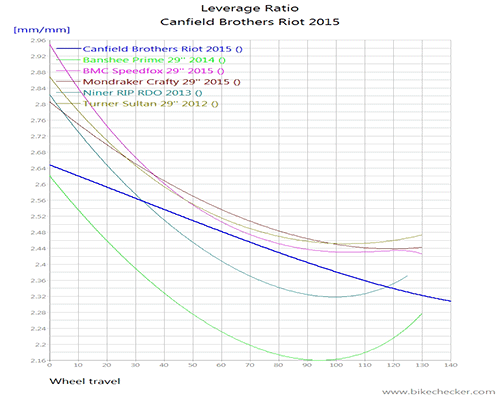

| LEVERAGE CURVE | PL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PL |
| OEM SHOCK | Cane Creek DB |
| UPGRADE OPTION | FOX VANRC |
| UPGRADE OPTION | AVALANCHE WOODIE |
| UPGRADE OPTION | AVALANCHE CHUBIE |
| SUGGESTED SHOCK SPRING | Not Coil Compatible |
| HEAD TUBE ANGLE | 66.5 |
| RECOMMENDED FORK TRAVEL | 150 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 40,45,50,55,60,65, |
| COMMENTS | 2015-2017 |
| COMMENTS |
