2015 DEVINCI Spartan
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 27.5 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 32 |
| SHOCK SIZE | 8.5 x 2.50 |
| TRAVEL MM | 160 |
| UPPER REDUCER | 25.0 x 8.0 |
| LOWER REDUCER | 42.0 x 8.0 |
| LINKAGE | FOUR BAR (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.52 |
| STARTING LEVERAGE | 3.04 |
| SAG POINT LEVERAGE | 2.64 |
| ENDING LEVERAGE | 2.34 |
| PROGRESSION % | 23.0 |

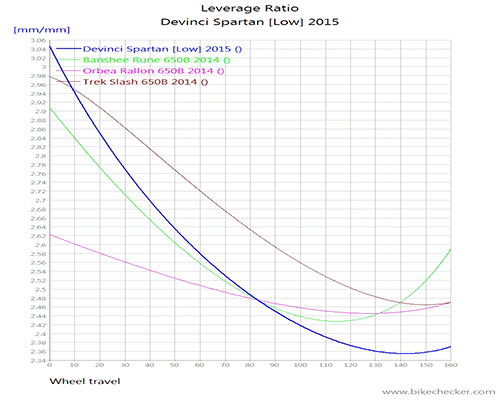

| LEVERAGE CURVE | PR
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE/REGRESSIVE PR |
| OEM SHOCK | ROCKSHOX SUPER DELUXE |
| OEM SHOCK | MONARCH RT3 DEBON AIR |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX DHX |
| UPGRADE OPTION | FOX FLOAT X |
| SUGGESTED SHOCK SPRING | 350,400,450,450,500,550, |
| HEAD TUBE ANGLE | 65 |
| RECOMMENDED FORK TRAVEL | 170 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX ZEB HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | Fox 38 HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,40,45,50,55, |
| COMMENTS | 2018-2021, hi/low adj 65.5 deg, shock installs upside down |
