2016 SANTA CRUZ Bronson V2
| MODEL VERSION YEARS | 2016-2018 |
|---|---|
| TIRE SIZE | 27.5 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 28 |
| SHOCK SIZE | 7.875 x 2.25 |
| TRAVEL MM | 150 |
| UPPER REDUCER | 22.0 x 8.0 |
| LOWER REDUCER | 22.0 x 8.0 |
| LINKAGE | VP (SLIGHT REGRESSION/PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.61 |
| STARTING LEVERAGE | 2.6 |
| SAG POINT LEVERAGE | 2.7 |
| ENDING LEVERAGE | 2.5 |
| PROGRESSION % | 3.8 |

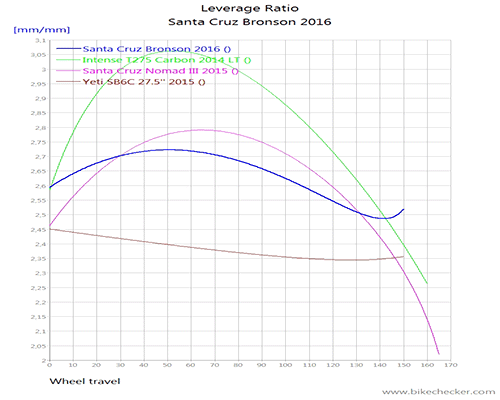

| LEVERAGE CURVE | LL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | REGRESSIVE/PROGRESSIVE LL |
| OEM SHOCK | MONARCH RT3 DEBON AIR |
| UPGRADE OPTION | MONARCH PLUS RC3 DEBON AIR |
| UPGRADE OPTION | FOX FLOAT DPS PERFORMANCE |
| SUGGESTED SHOCK SPRING | Not Coil Compatible |
| HEAD TUBE ANGLE | 66.0 |
| RECOMMENDED FORK TRAVEL | 150 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,45,50,55,60, |
| COMMENTS | 2016-2018 |
| COMMENTS |
