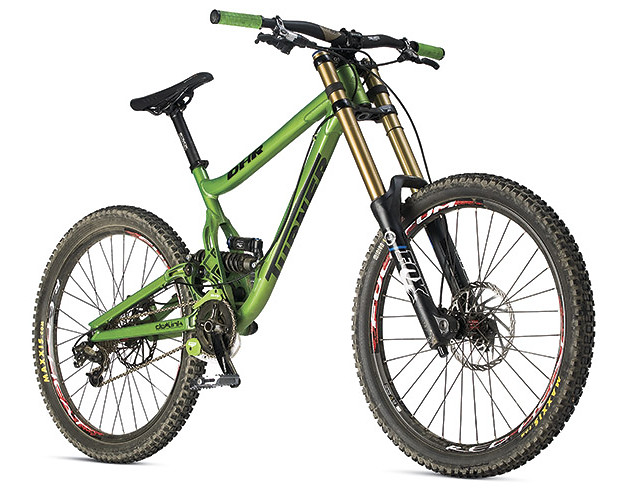

2016 TURNER DHR
| MODEL VERSION YEARS | 2016 |
|---|---|
| TIRE SIZE | 27.5 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 40 |
| SHOCK SIZE | 9.5 x 3.00 |
| TRAVEL MM | 210.8 |
| UPPER REDUCER | 22.0 x 8.0 |
| LOWER REDUCER | 22.0 x 8.0 |
| LINKAGE | DW (SPLIT PIVOT) |
| AVERAGE LEVERAGE | 2.77 |
| STARTING LEVERAGE | 3.8 |
| SAG POINT LEVERAGE | 2.8 |
| ENDING LEVERAGE | 2.4 |
| PROGRESSION % | 36.84 |

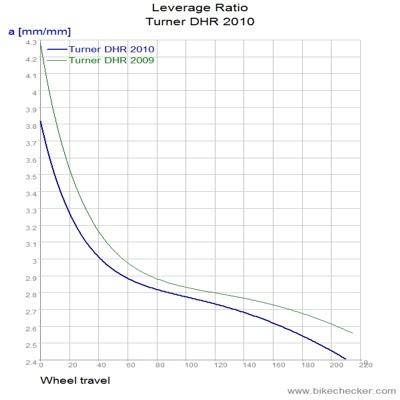

| LEVERAGE CURVE | PBLE
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE/LINEAR PBLE |
| OEM SHOCK | FOX RC4 |
| UPGRADE OPTION | FOX VANRC |
| UPGRADE OPTION | AVALANCHE WOODIE |
| UPGRADE OPTION | BOMBER CR |
| SUGGESTED SHOCK SPRING | 350,400,400,450,500,550, |
| HEAD TUBE ANGLE | 63.0 |
| RECOMMENDED FORK TRAVEL | 203 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | Fox 40 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX BOXXER HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 30,30,35,40,40,45, |
| COMMENTS | best guess leverage |
| COMMENTS |
