Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online

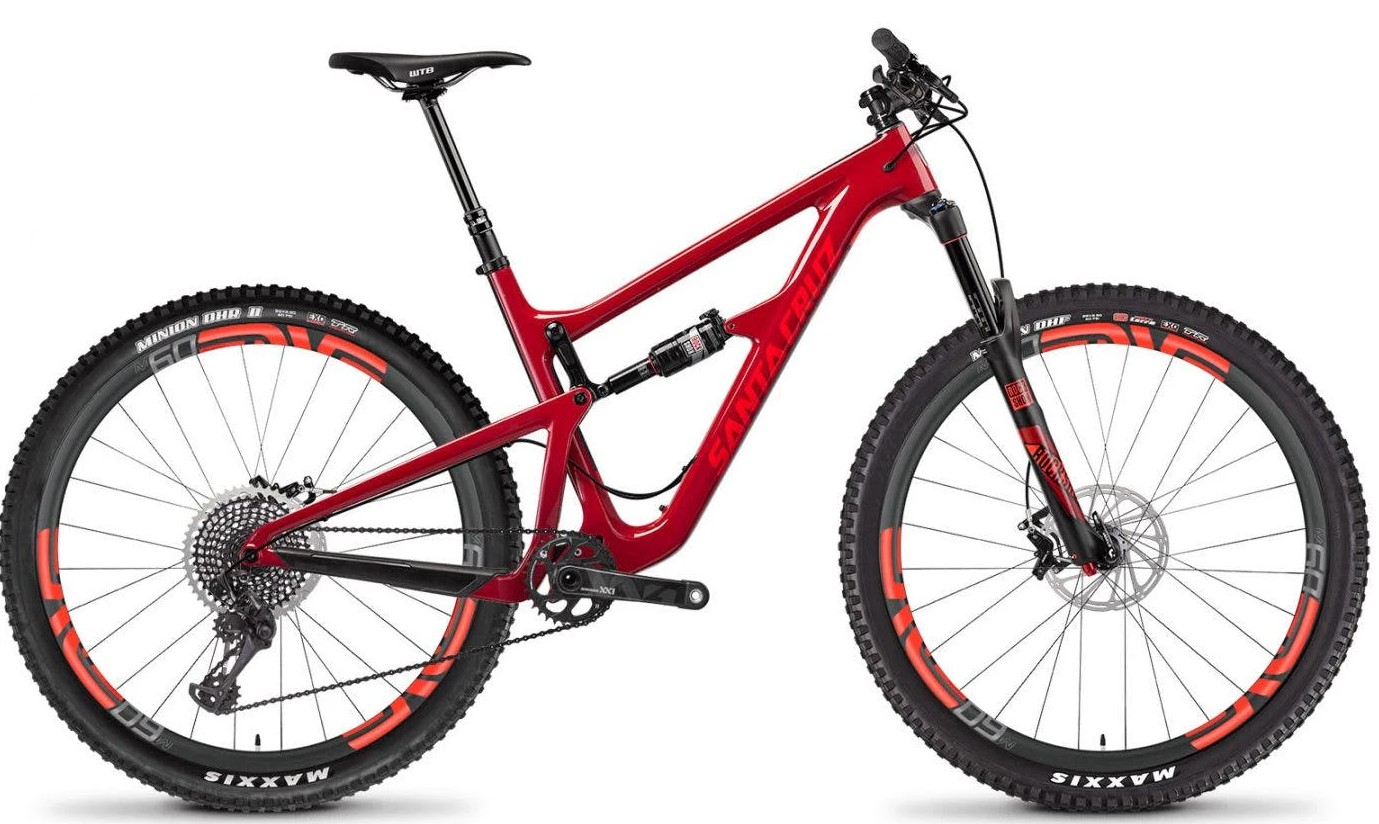

2016 SANTA CRUZ Hightower 1
| MODEL VERSION YEARS | 2016-2019 |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 32 |
| SHOCK SIZE | 200 x 51 |
| TRAVEL MM | 150 |
| UPPER REDUCER | 22.0 x 8.0 |
| LOWER REDUCER | 22.0 x 8.0 |
| LINKAGE | VP (REGRESSIVE/PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.94 |
| STARTING LEVERAGE | 2.57 |
| SAG POINT LEVERAGE | 2.73 |
| ENDING LEVERAGE | 2.45 |
| PROGRESSION % | 4.67 |

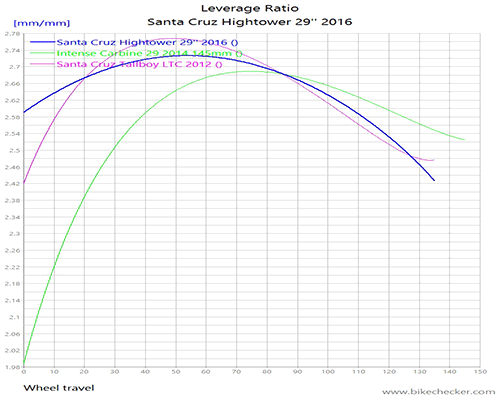

| LEVERAGE CURVE | RP
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | REGRESSIVE/PROGRESSIVE RP |
| OEM SHOCK | MONARCH RT3 |
| UPGRADE OPTION | FOX FLOAT DPS |
| UPGRADE OPTION | MONARCH PLUS RC3 DEBON AIR |
| SUGGESTED SHOCK SPRING | Not Coil Compatible |
| HEAD TUBE ANGLE | 67.0 |
| RECOMMENDED FORK TRAVEL | 150 |
| OEM FORK | ROCKSHOX LYRIK DEBON AIR |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 40,45,50,55,60,65, |
| COMMENTS | 140-160 fork travel |
| COMMENTS |
