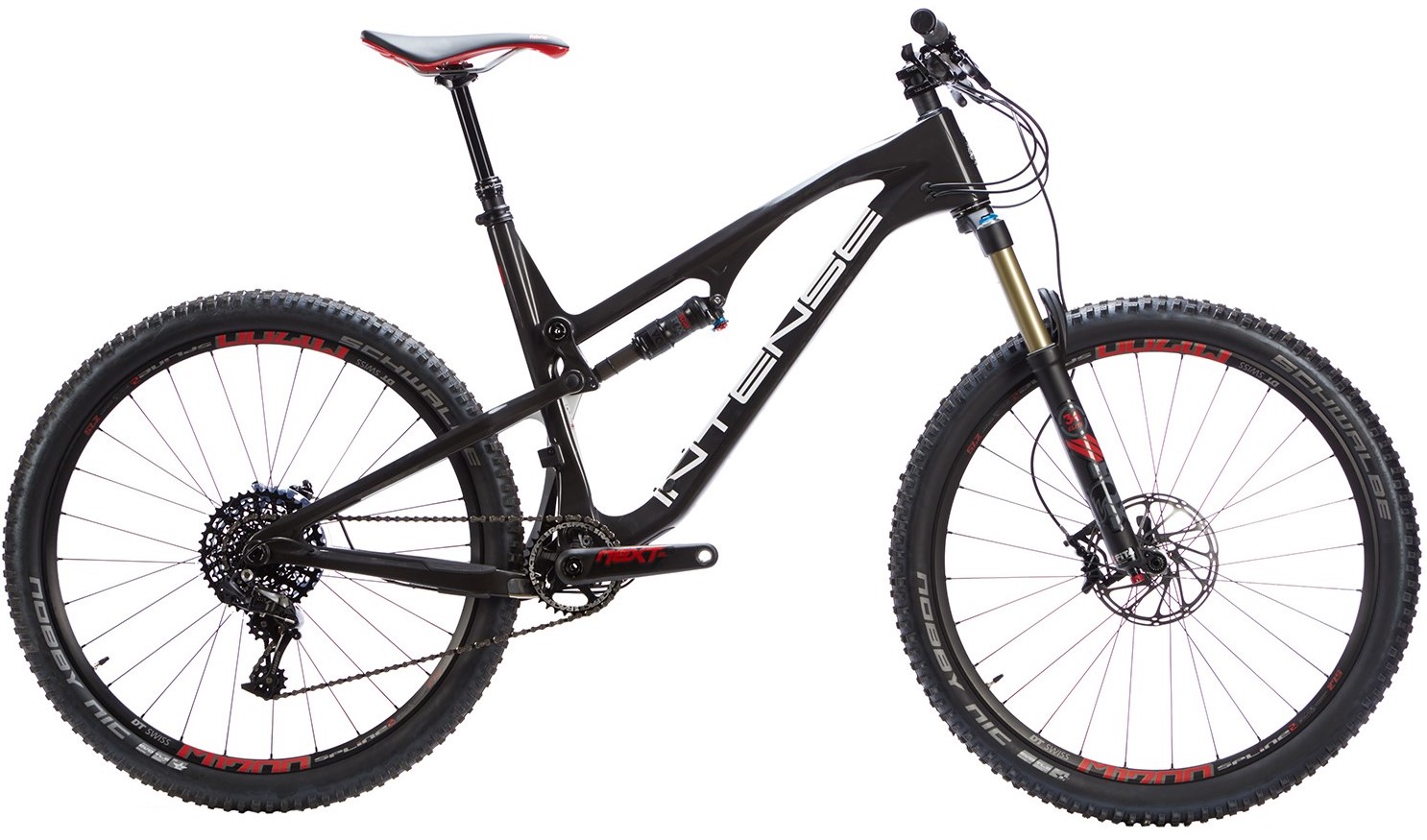

2016 INTENSE Spider 275C Recluse
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 27.5 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 32 |
| SHOCK SIZE | 200 x 57 |
| TRAVEL MM | 140 |
| UPPER REDUCER | 22.0 x 6.0 |
| LOWER REDUCER | 30.0 x 6.0 |
| LINKAGE | VP (REGRESSIVE/PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.46 |
| STARTING LEVERAGE | 2.4 |
| SAG POINT LEVERAGE | 2.65 |
| ENDING LEVERAGE | 2.1 |
| PROGRESSION % | 12.50 |

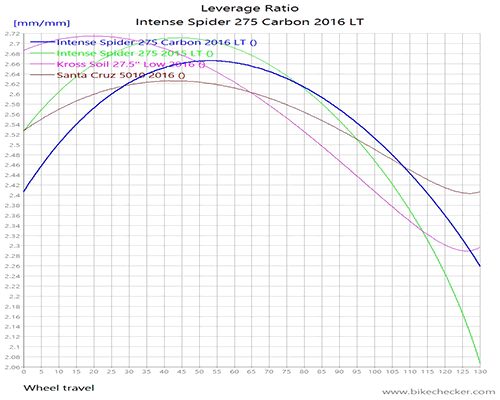

| LEVERAGE CURVE | RP
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | RP |
| OEM SHOCK | MONARCH PLUS RC3 DEBON AIR |
| UPGRADE OPTION | |
| SUGGESTED SHOCK SPRING | Not Coil Compatible |
| HEAD TUBE ANGLE | |
| RECOMMENDED FORK TRAVEL | 140 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 40,45,50,55,60,65, |
| COMMENTS | Recluse link, 2016/17, regression in initial stroke |
| COMMENTS |
