Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online

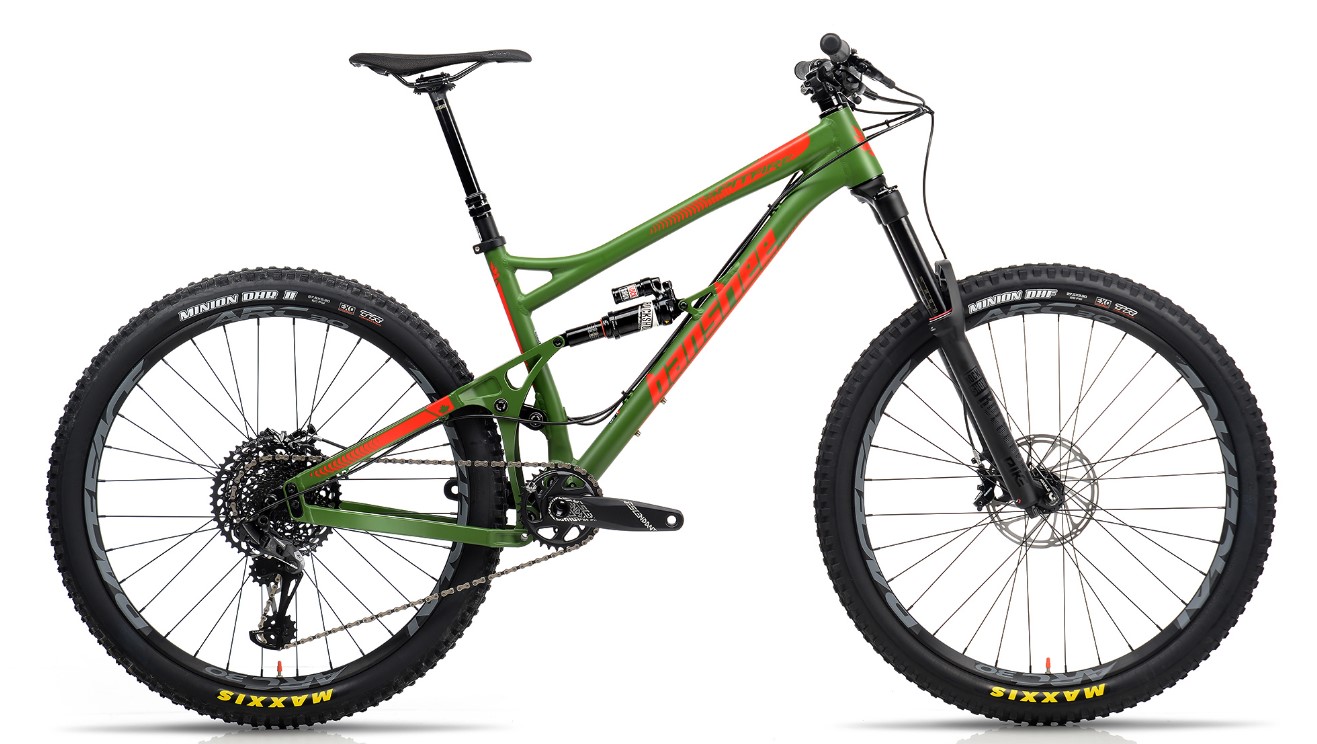

2016 BANSHEE Spitfire V2
| MODEL VERSION YEARS | 2016 |
|---|---|
| TIRE SIZE | 27.5 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 32 |
| SHOCK SIZE | 200 x 57 |
| TRAVEL MM | 140 |
| UPPER REDUCER | 20.0 x 8.0 |
| LOWER REDUCER | 40.0 x 8.0 |
| LINKAGE | FLOATING PIVOT LOWER |
| AVERAGE LEVERAGE | 2.46 |
| STARTING LEVERAGE | 2.92 |
| SAG POINT LEVERAGE | 2.6 |
| ENDING LEVERAGE | 2.24 |
| PROGRESSION % | 23.3 |

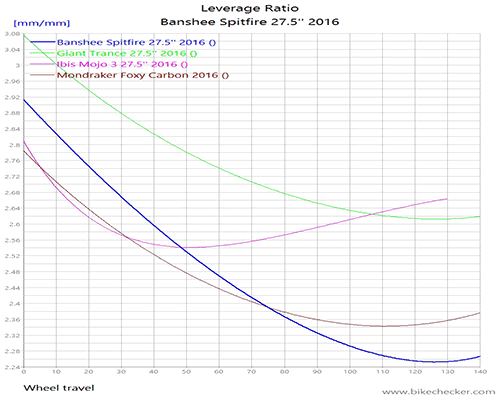

| LEVERAGE CURVE | PR
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PR |
| OEM SHOCK | MONARCH PLUS RC3 DEBON AIR |
| UPGRADE OPTION | BOMBER CR |
| SUGGESTED SHOCK SPRING | 350,400,450,500,550,600, |
| HEAD TUBE ANGLE | 66.5 |
| RECOMMENDED FORK TRAVEL | 150 |
| OEM FORK | ROCKSHOX PIKE 27.5 |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX DOMAIN HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 40,45,50,55,60,65, |
| COMMENTS | AHTA 66.0 |
| COMMENTS |
