2016 INTENSE Uzzi
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 27.5 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 35 |
| SHOCK SIZE | 8.75 x 2.75 |
| TRAVEL MM | 190 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | VP (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.72 |
| STARTING LEVERAGE | 3.3 |
| SAG POINT LEVERAGE | 3.5 |
| ENDING LEVERAGE | 1.8 |
| PROGRESSION % | 45.45 |

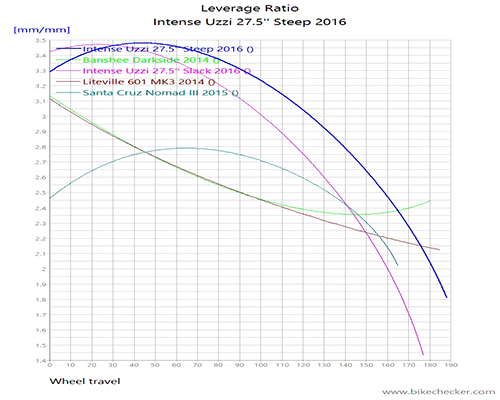

| LEVERAGE CURVE | RP
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | REGRESSIVE/PROGRESSIVE RP |
| OEM SHOCK | FOX DHX2 |
| UPGRADE OPTION | FOX VANRC |
| UPGRADE OPTION | BOMBER CR |
| SUGGESTED SHOCK SPRING | 300,350,400,450,500,550, |
| HEAD TUBE ANGLE | 64.0 |
| RECOMMENDED FORK TRAVEL | 203 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | Fox 40 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX BOXXER HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 25,30,30,35,40,40, |
| COMMENTS | setting a 178 mm, setting b 190 mm |
| COMMENTS |
