Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online

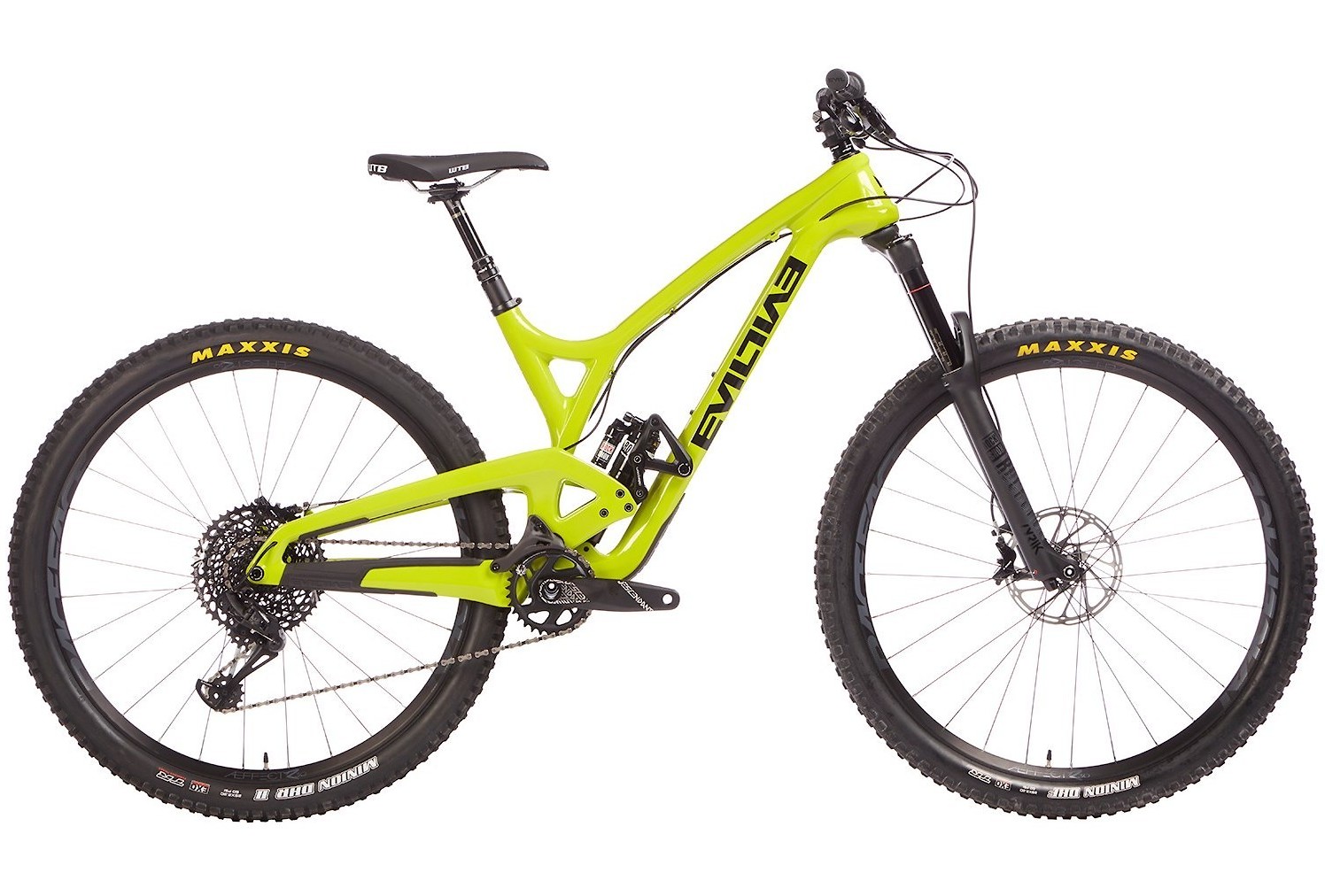

2016 EVIL BIKES WRECKONING V1
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 32 |
| SHOCK SIZE | 8.5 x 2.50 |
| TRAVEL MM | 160 |
| UPPER REDUCER | 21.8 x 8.0 |
| LOWER REDUCER | 21.8 x 8.0 |
| LINKAGE | DW (DELTA LINKAGE SYSTEM) SINGLE PIVOT |
| AVERAGE LEVERAGE | 2.52 |
| STARTING LEVERAGE | 3.1 |
| SAG POINT LEVERAGE | 2.6 |
| ENDING LEVERAGE | 2.3 |
| PROGRESSION % | 25.8 |

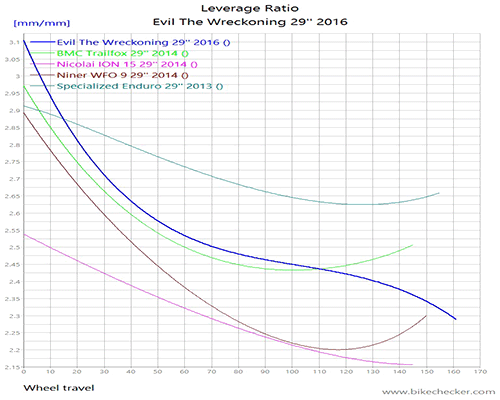

| LEVERAGE CURVE | PBLE
|
| Installed Pictures | Installed Views
|
| SHOCK TUNE | PROGRESSIVE PBLE |
| OEM SHOCK | MONARCH PLUS RC3 |
| UPGRADE OPTION | BOMBER CR |
| SUGGESTED SHOCK SPRING | 350,400,450,450,500,550, |
| HEAD TUBE ANGLE | 66.1 |
| RECOMMENDED FORK TRAVEL | 170 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX ZEB HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | Fox 38 HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,40,45,50,55, |
| COMMENTS | 2016-2018 |
| COMMENTS |
