Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online

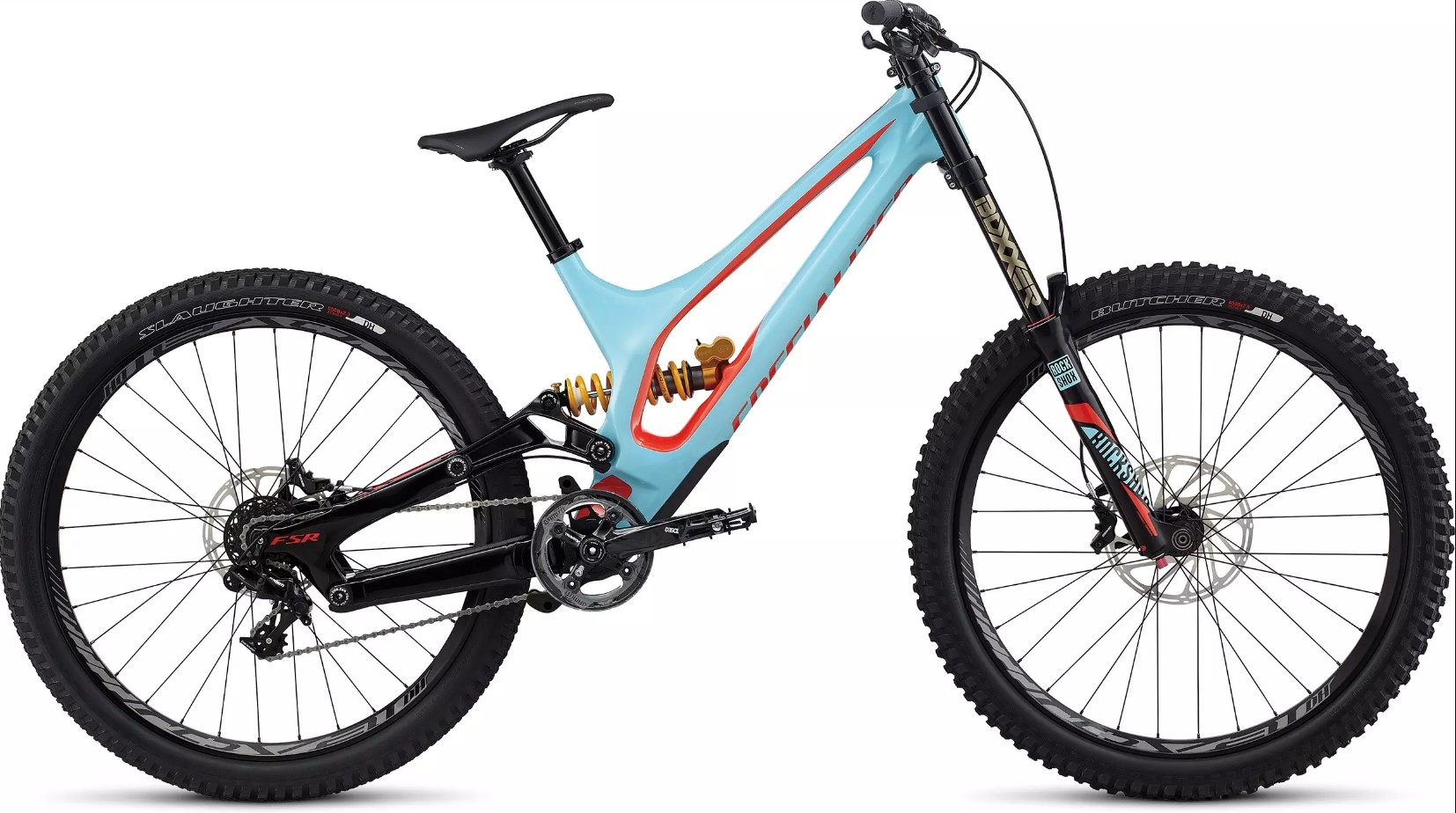

2017 SPECIALIZED Demo 8
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 27.5 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 38 |
| SHOCK SIZE | 9.5 x 3.00 |
| TRAVEL MM | 200 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | FOUR BAR (SLIGHT PROGRESSION) |

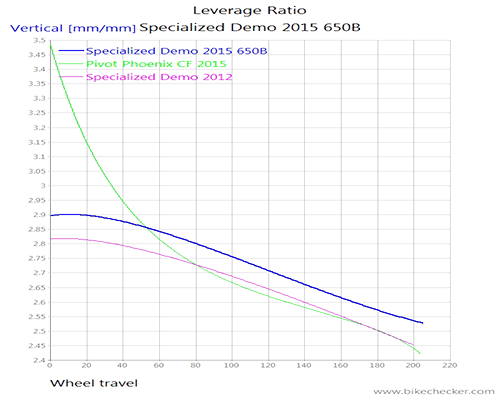

| AVERAGE LEVERAGE | 2.62 |
| STARTING LEVERAGE | 2.9 |
| SAG POINT LEVERAGE | 2.85 |
| ENDING LEVERAGE | 2.55 |
| PROGRESSION % | 12.07 |

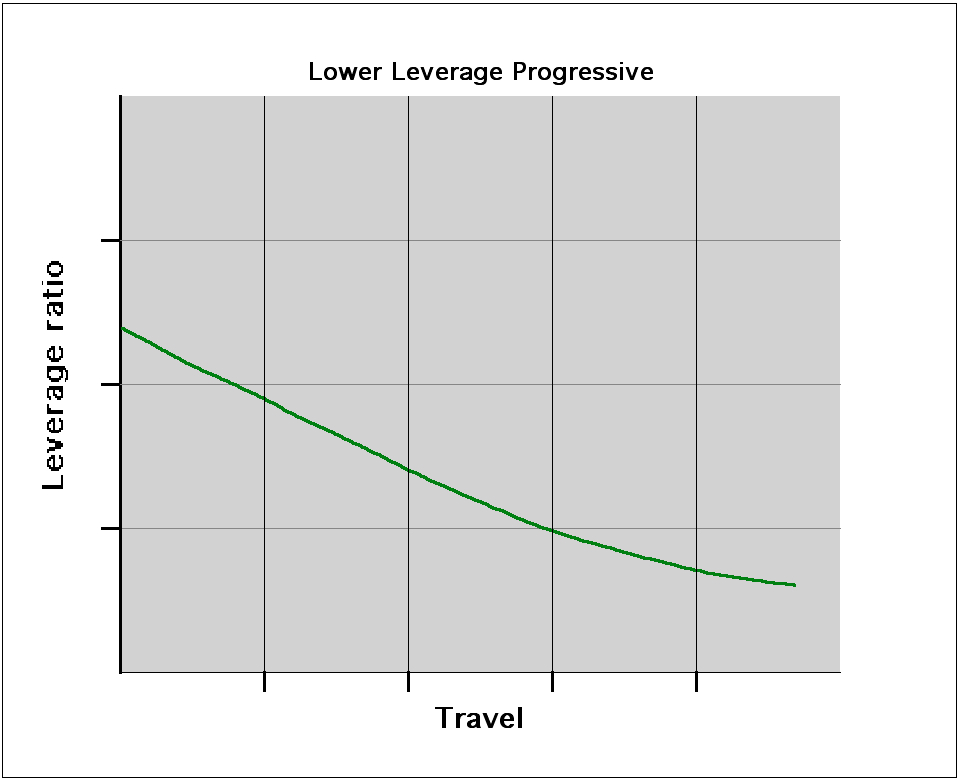

| LEVERAGE CURVE | LP
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | 4-BAR LP |
| OEM SHOCK | FOX VANRC |
| OEM SHOCK | ROCKSHOX COIL SUPER DELUXE |
| UPGRADE OPTION | BOMBER CR |
| SUGGESTED SHOCK SPRING | Not Coil Compatible |
| HEAD TUBE ANGLE | 62.7 |
| RECOMMENDED FORK TRAVEL | 200 |
| OEM FORK | ROCKSHOX BOXXER RC |
| UPGRADE OPTION CARTRIDGE/SPRING | Fox 40 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX BOXXER HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 30,30,35,40,40,45, |
| COMMENTS | 2015-2019 |
| COMMENTS | 2015-17 link upgrade for more progression |
