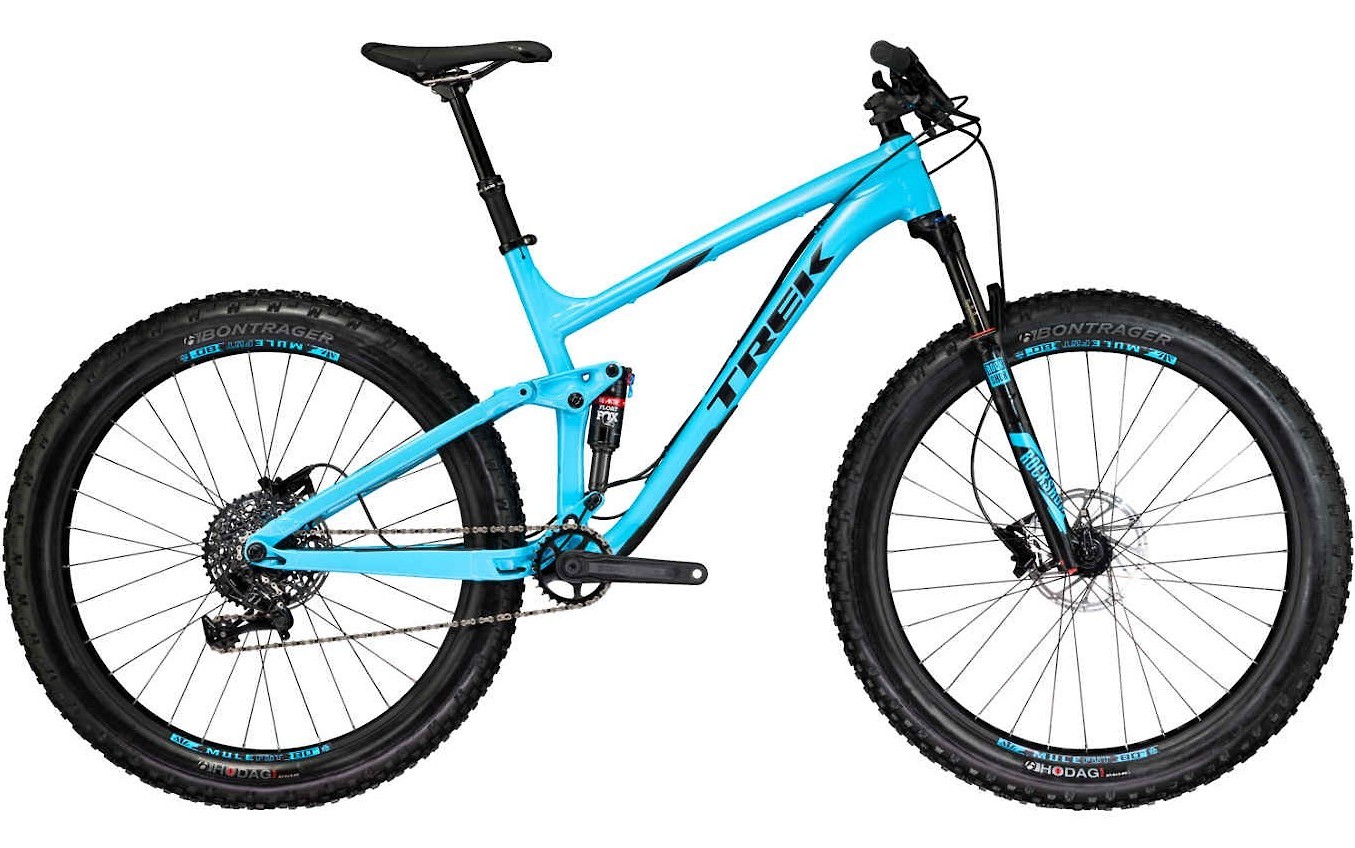

2017 TREK Farley EX8
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 27.5+ Fat Tire |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 35 |
| SHOCK SIZE | 7.25 x 1.875 |
| TRAVEL MM | 120 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | |
| AVERAGE LEVERAGE | 2.52 |
| STARTING LEVERAGE | 2.9 |
| SAG POINT LEVERAGE | 2.7 |
| ENDING LEVERAGE | 2.4 |
| PROGRESSION % | 17.2 |
| LEVERAGE CURVE | LP
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE LP |
| OEM SHOCK | Fox Float RE:aktiv |
| UPGRADE OPTION | FOX FLOAT DPS PERFORMANCE |
| SUGGESTED SHOCK SPRING | 400,500,550,600,650,700, |
| HEAD TUBE ANGLE | 69 |
| RECOMMENDED FORK TRAVEL | 120 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 34 STEP-CAST |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX PIKE |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z21 |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 55,65,70,75,85,90, |
| COMMENTS | 2017-18, best guess on leverage |
| COMMENTS |
