2017 COMMENCAL Meta 4.2 V4
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 27.5 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 32 |
| SHOCK SIZE | 230 x 60 |
| TRAVEL MM | 160 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | FOUR BAR (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.67 |
| STARTING LEVERAGE | 3.05 |
| SAG POINT LEVERAGE | 2.75 |
| ENDING LEVERAGE | 2.58 |
| PROGRESSION % | 15.4 |

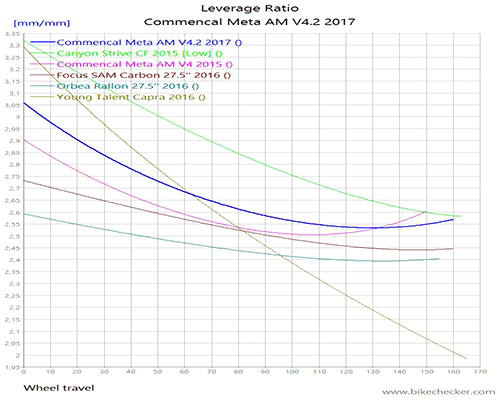

| LEVERAGE CURVE | PR
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE/REGRESSIVE PR |
| OEM SHOCK | ROCKSHOX SUPER DELUXE |
| UPGRADE OPTION | FOX FLOAT X |
| UPGRADE OPTION | BOMBER CR |
| SUGGESTED SHOCK SPRING | 400,450,500,550,600,600, |
| HEAD TUBE ANGLE | |
| RECOMMENDED FORK TRAVEL | 170 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX ZEB HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | Fox 38 HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,40,45,50,55, |
| COMMENTS | yoke mounted, 2 positions |
| COMMENTS |
