Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online

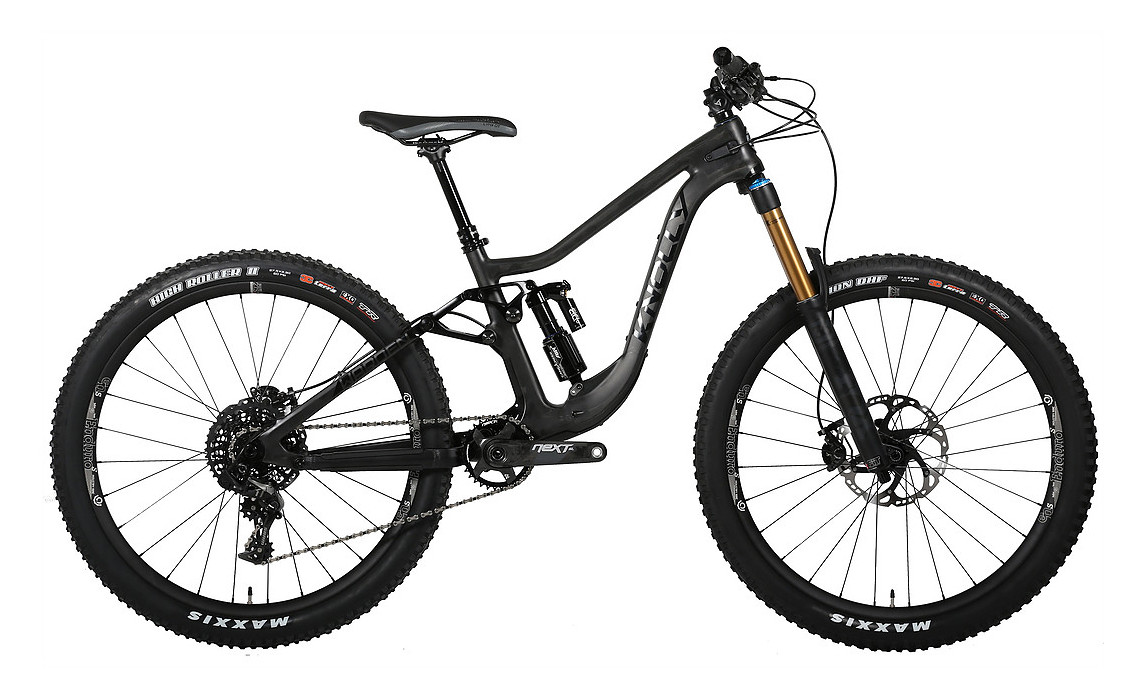

2017 KNOLLY Warden Carbon
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 27.5 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 33 |
| SHOCK SIZE | 200 x 57 |
| TRAVEL MM | 155 |
| UPPER REDUCER | 21.8 x 6.0 |
| LOWER REDUCER | 21.8 x 6.0 |
| LINKAGE | FOURx FOUR BAR (PROGRESSIVE/REGRESSIVE) |
| AVERAGE LEVERAGE | 2.72 |
| STARTING LEVERAGE | 3.12 |
| SAG POINT LEVERAGE | 2.8 |
| ENDING LEVERAGE | 2.4 |
| PROGRESSION % | 23.1 |

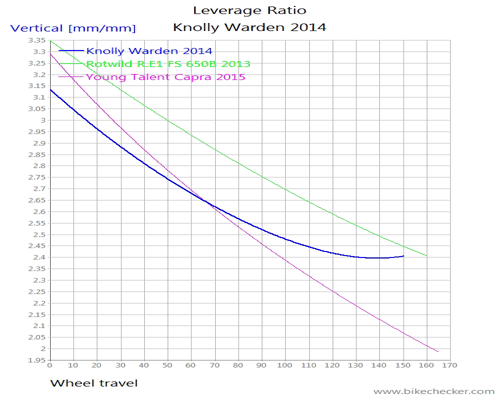

| LEVERAGE CURVE | PBLE
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | 4-BAR PBLE |
| OEM SHOCK | |
| UPGRADE OPTION | FOX VANRC |
| UPGRADE OPTION | BOMBER CR |
| SUGGESTED SHOCK SPRING | 400,450,500,550,600,650, |
| HEAD TUBE ANGLE | 68.0 |
| RECOMMENDED FORK TRAVEL | 160 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,45,50,55,60, |
| COMMENTS | 2019 21.8 x 8 upper bushing, Carbon frame is 155 mm |
| COMMENTS |
