2018 YT Industries Capra CF Pro
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 27.5 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 32 |
| SHOCK SIZE | 250 x 75 |
| TRAVEL MM | 180 |
| UPPER REDUCER | 30.0 x 8.0 |
| LOWER REDUCER | 40.0 x 8.0 |
| LINKAGE | HORST FOUR BAR (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.40 |
| STARTING LEVERAGE | 3.15 |
| SAG POINT LEVERAGE | 2.6 |
| ENDING LEVERAGE | 2.03 |
| PROGRESSION % | 35.6 |

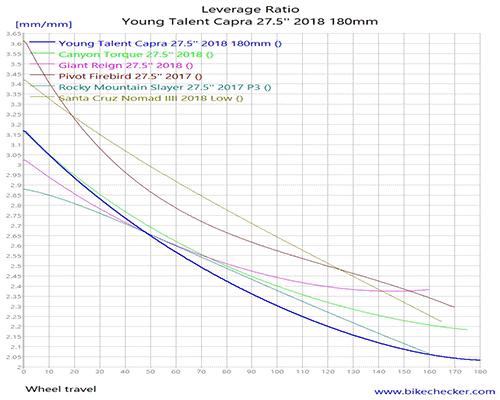

| LEVERAGE CURVE | PL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PL |
| OEM SHOCK | FOX FLOAT X2 |
| UPGRADE OPTION | BOMBER CR |
| SUGGESTED SHOCK SPRING | 250,300,350,400,400,450, |
| HEAD TUBE ANGLE | 65 |
| RECOMMENDED FORK TRAVEL | 180 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX ZEB HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | Fox 38 HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 30,35,40,45,50,50, |
| COMMENTS | 2018-2021, aluminum has 250 x 70/75 with 180 mm travel |
| COMMENTS |
