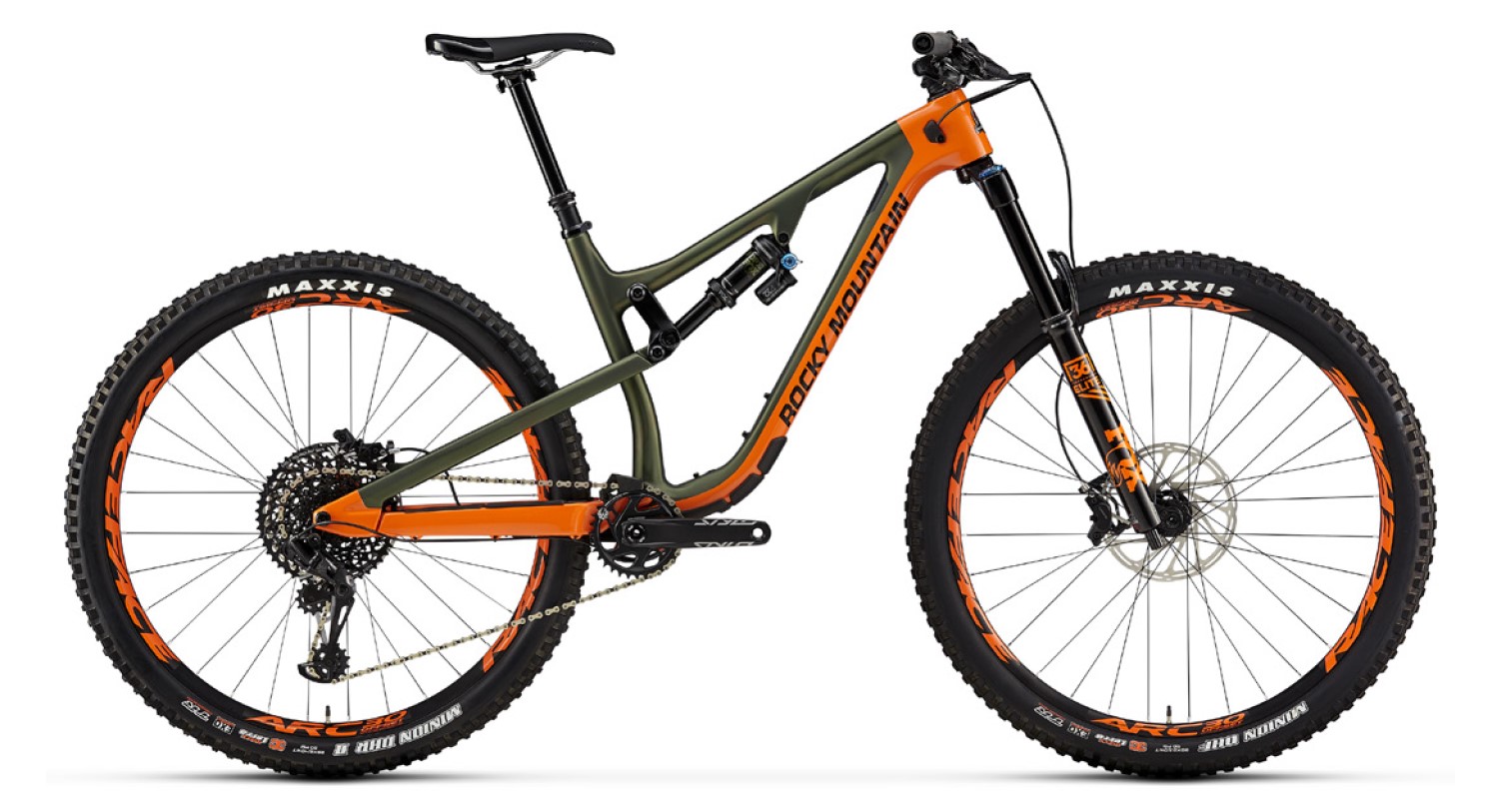

2018 ROCKY MOUNTAIN Instinct Alloy BC
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 32 |
| SHOCK SIZE | 8.5 x 2.50 |
| TRAVEL MM | 155 |
| UPPER REDUCER | 25.0 x 8.0 |
| LOWER REDUCER | 32.0 x 8.0 |
| LINKAGE | ROCKER LINKAGE (RISING RATE) |
| AVERAGE LEVERAGE | 2.44 |
| STARTING LEVERAGE | 3.1 |
| SAG POINT LEVERAGE | 2.95 |
| ENDING LEVERAGE | 2.15 |
| PROGRESSION % | 30.6 |

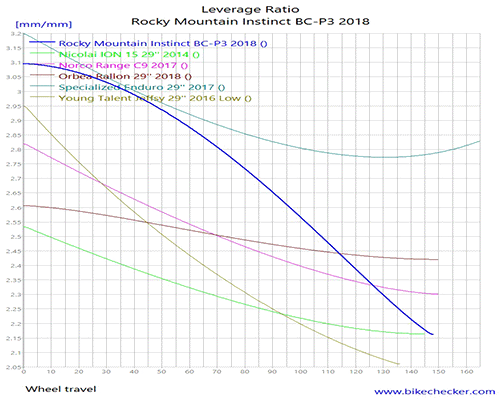

| LEVERAGE CURVE | PE
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PE |
| OEM SHOCK | FOX FLOAT DPX2 |
| UPGRADE OPTION | BOMBER CR |
| SUGGESTED SHOCK SPRING | 350,350,400,450,500,550, |
| HEAD TUBE ANGLE | 66.2 |
| RECOMMENDED FORK TRAVEL | 160 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,45,50,55,60, |
| COMMENTS | 9 positions angles and rate, 66.1-69.1, pos 3 for coil |
| COMMENTS | 2018_Ride9_Instinct.pdf |
