2018 IBIS Mojo HD4
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 27.5 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 32 |
| SHOCK SIZE | 7.875 x 2.25 |
| TRAVEL MM | 153 |
| UPPER REDUCER | 21.8 x 8.0 |
| LOWER REDUCER | 15.2 x 8.0 |
| LINKAGE | FOUR BAR (PROGRESSIVE/REGRESSIVE) |
| AVERAGE LEVERAGE | 2.68 |
| STARTING LEVERAGE | 2.85 |
| SAG POINT LEVERAGE | |
| ENDING LEVERAGE | 2.68 |
| PROGRESSION % | 6.0 |

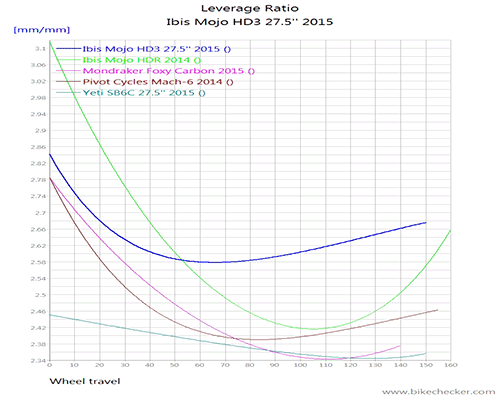

| LEVERAGE CURVE | PR
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE/REGRESSIVE PR |
| OEM SHOCK | FOX FLOAT DPS |
| OEM SHOCK | FOX FLOAT X2 |
| UPGRADE OPTION | FOX FLOAT DPS PERFORMANCE |
| SUGGESTED SHOCK SPRING | Not Coil Compatible |
| HEAD TUBE ANGLE | 69.4 |
| RECOMMENDED FORK TRAVEL | 160 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,45,50,55,60, |
| COMMENTS | 2018-2020, yoke system |
| COMMENTS | 2.85-2.58-2.68 to 1 |
