2018 IBIS Ripley LS V3
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 27 |
| SHOCK SIZE | 7.25 x 1.75 |
| TRAVEL MM | 120 |
| UPPER REDUCER | 25.0 x 8.0 |
| LOWER REDUCER | 15.2 x 8.0 |
| LINKAGE | DW (SPLIT PIVOT) |
| AVERAGE LEVERAGE | 2.70 |
| STARTING LEVERAGE | 2.9 |
| SAG POINT LEVERAGE | 2.60 |
| ENDING LEVERAGE | 2.64 |
| PROGRESSION % | 9.0 |

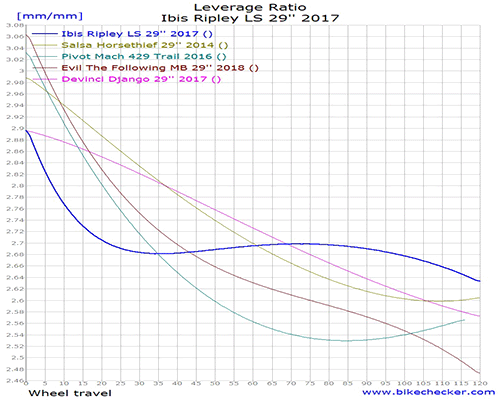

| LEVERAGE CURVE | PBLE
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE/LINEAR PBLE |
| OEM SHOCK | FOX FLOAT DPS |
| UPGRADE OPTION | FOX FLOAT DPS |
| UPGRADE OPTION | FOX FLOAT DPS PERFORMANCE |
| UPGRADE OPTION | MONARCH RT3 |
| SUGGESTED SHOCK SPRING | Not Coil Compatible |
| HEAD TUBE ANGLE | 67.5 |
| RECOMMENDED FORK TRAVEL | 130 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 50,55,60,70,75,80, |
| COMMENTS | 2017-2019 V3, 140 fork possible slacker |
| COMMENTS |
