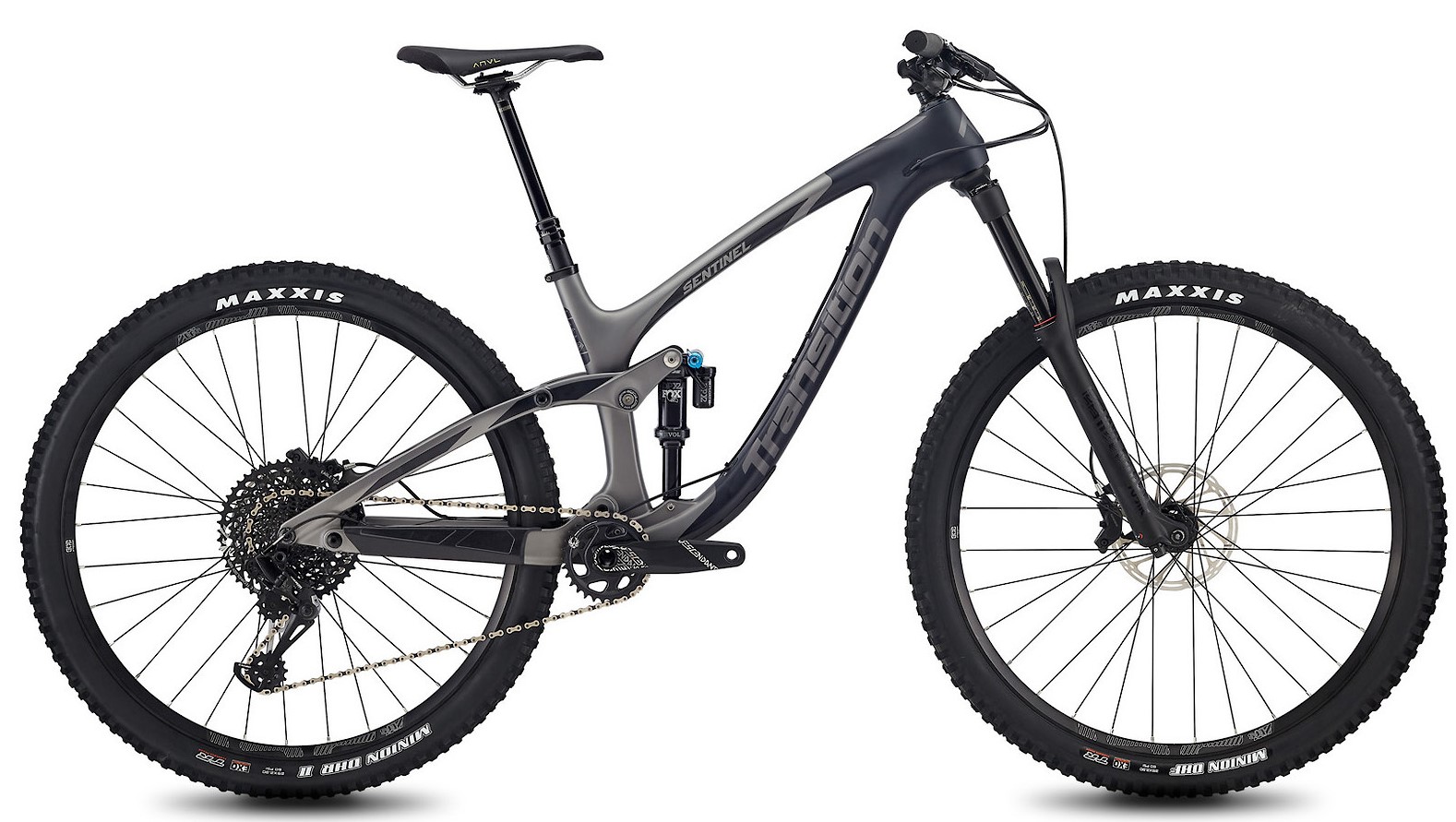

2018 TRANSITION Sentinel V1
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 30 |
| SHOCK SIZE | 205 x 57.5,T |
| TRAVEL MM | 140 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | FOUR BAR (SLIGHT PROGRESSION) |
| AVERAGE LEVERAGE | 2.43 |
| STARTING LEVERAGE | 2.5 |
| SAG POINT LEVERAGE | 2.5 |
| ENDING LEVERAGE | 2.3 |
| PROGRESSION % | 8.0 |

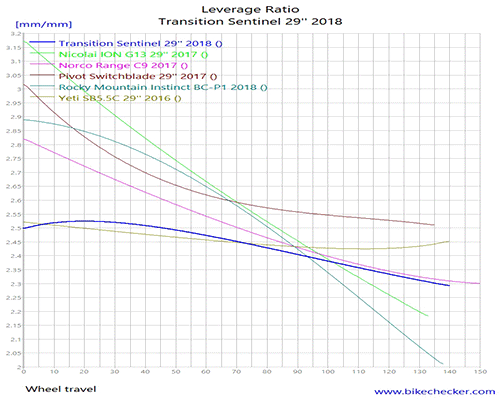

| LEVERAGE CURVE | LP
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | 4-BAR LP |
| OEM SHOCK | FOX FLOAT DPX2 |
| UPGRADE OPTION | FOX FLOAT X |
| SUGGESTED SHOCK SPRING | Not Coil Compatible |
| HEAD TUBE ANGLE | |
| RECOMMENDED FORK TRAVEL | 150 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 40,45,50,55,55,60, |
| COMMENTS | GX-Carbon, ran into 2020, some overlap |
| COMMENTS |
