All data is our best estimate based on the information provided online
2019 Pole Evolink 158
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 32 |
| SHOCK SIZE | 216 x 63 |
| TRAVEL MM | 158 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | VP (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.49 |
| STARTING LEVERAGE | 2.8 |
| SAG POINT LEVERAGE | 2.5 |
| ENDING LEVERAGE | 2.4 |
| PROGRESSION % | 14.29 |

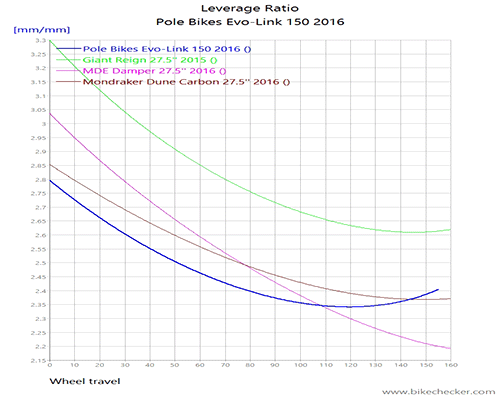

| LEVERAGE CURVE | PBLE
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE/LINEAR PBLE |
| OEM SHOCK | EXT STORIA V3 COIL |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX DHX |
| UPGRADE OPTION | FOX FLOAT X |
| SUGGESTED SHOCK SPRING | Not Coil Compatible |
| HEAD TUBE ANGLE | 64 |
| RECOMMENDED FORK TRAVEL | 170 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX ZEB HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | Fox 38 HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,40,45,50,55, |
| COMMENTS | LEVERAGE BEST GUESS BASED ON 150 LINK |
| COMMENTS |
