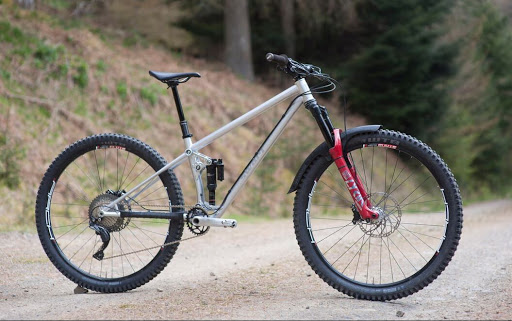

2020 SWARF CYCLES 155
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | STEEL |
| BIKE WEIGHT (lbs) | 35 |
| SHOCK SIZE | 205 x 60,T |
| TRAVEL MM | 155 |
| UPPER REDUCER | Trunnion x 10.0 |
| LOWER REDUCER | 30.0 x 8.0 |
| LINKAGE | FOUR BAR (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.58 |
| STARTING LEVERAGE | 2.85 |
| SAG POINT LEVERAGE | 2.58 |
| ENDING LEVERAGE | 1.90 |
| PROGRESSION % | 33.3 |
| LEVERAGE CURVE | PL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PL |
| OEM SHOCK | ROCKSHOX SUPER DELUXE |
| UPGRADE OPTION | BOMBER CR |
| SUGGESTED SHOCK SPRING | 350,400,450,500,550,600, |
| HEAD TUBE ANGLE | 63.5 |
| RECOMMENDED FORK TRAVEL | 160 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,45,50,55,60, |
| COMMENTS | 65 MM STROKE GET 167 MM TRAVEL |
| COMMENTS |
