All data is our best estimate based on the information provided online

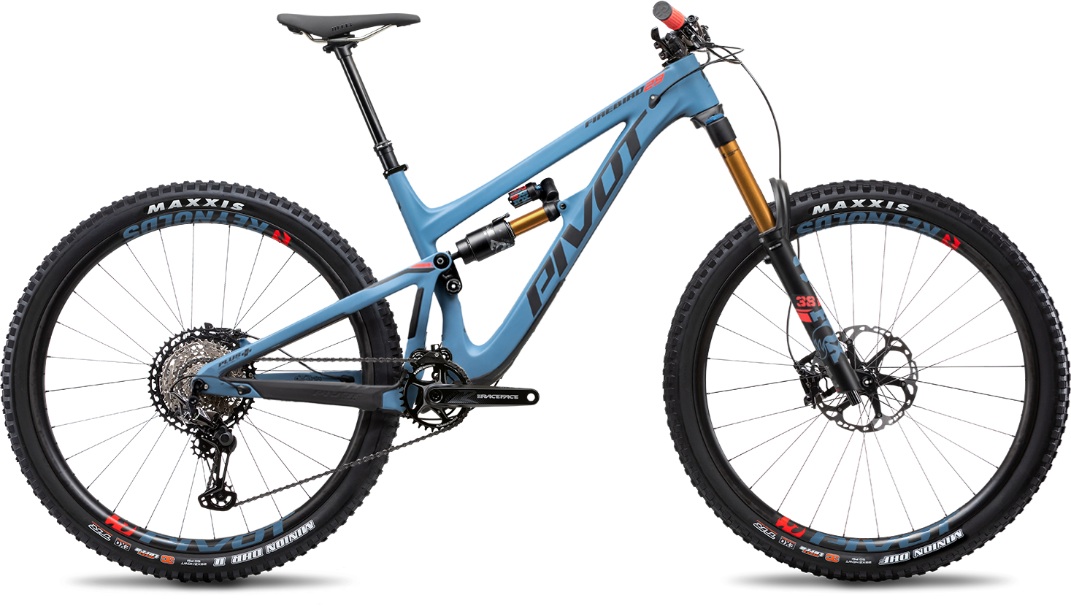

2020 PIVOT Firebird 29
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 32 |
| SHOCK SIZE | 205 x 60,T |
| TRAVEL MM | 162 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | DW (SPLIT PIVOT) |
| AVERAGE LEVERAGE | 2.70 |
| STARTING LEVERAGE | 3.3 |
| SAG POINT LEVERAGE | 2.63 |
| ENDING LEVERAGE | 2.1 |
| PROGRESSION % | 36.4 |

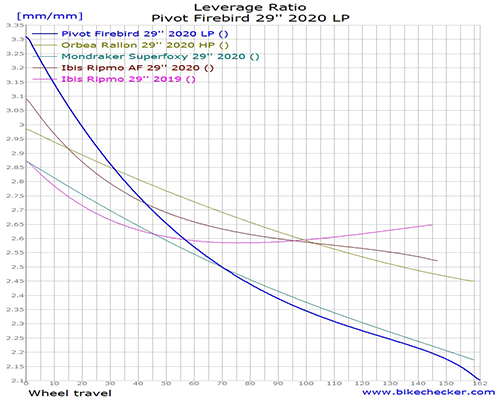

| LEVERAGE CURVE | HPL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE HPL |
| OEM SHOCK | FOX FLOAT X |
| OEM SHOCK | FOX DHX2 |
| UPGRADE OPTION | FOX DHX |
| UPGRADE OPTION | BOMBER CR |
| SUGGESTED SHOCK SPRING | 400,450,500,550,600,650, |
| HEAD TUBE ANGLE | 65.5 |
| RECOMMENDED FORK TRAVEL | 170 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX ZEB HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | Fox 38 HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,40,45,50,55, |
| COMMENTS | flip chip for bb height changes with 27.5/29, 27.5 is 165 mm travel |
| COMMENTS | 2020-2021 |
