Bike Build Specs

CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help

LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD

All data is our best estimate based on the information provided online

2020 GT Bikes Fury Team Carbon 29

MODEL VERSION YEARS 2019-2022
TIRE SIZE 27.5 or 29
FRAME MATERIAL CARBON
BIKE WEIGHT (lbs) 40
SHOCK SIZE 225 x 75
TRAVEL MM 190
UPPER REDUCER Trunnion x 10.0
LOWER REDUCER 22.2 x 8.0
LINKAGE FOUR BAR High Pivot (PROGRESSIVE)
AVERAGE LEVERAGE 2.53
STARTING LEVERAGE 2.7
SAG POINT LEVERAGE 2.7
ENDING LEVERAGE 2.28
PROGRESSION % 15.56

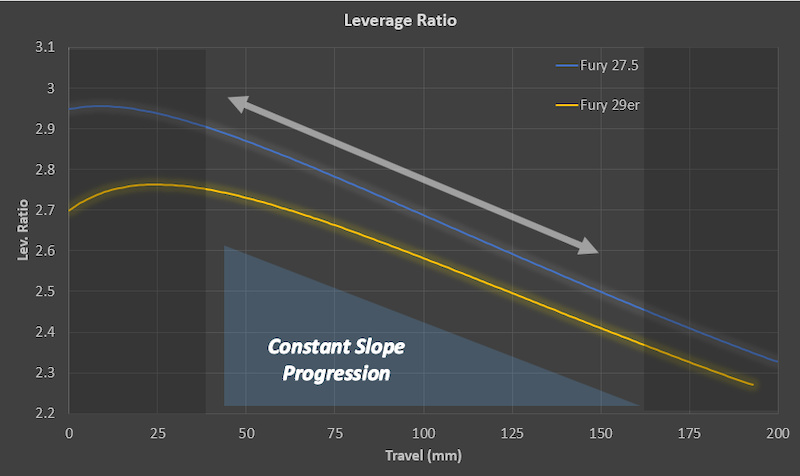

LEVERAGE CURVE RP

Installed PicturesInstalled Views

SHOCK TUNE PROGRESSIVE RP
OEM SHOCK FOX FLOAT X2
UPGRADE OPTION BOMBER CR

SUGGESTED SHOCK SPRING
(140/160/180/200/220/240 LBS without gear)

 300,350,400,450,450,500,
HEAD TUBE ANGLE 62.5
RECOMMENDED FORK TRAVEL 203
OEM FORK
UPGRADE OPTION CARTRIDGE/SPRING Fox 40 HYBRID
UPGRADE OPTION CARTRIDGE/SPRING ROCKSHOX BOXXER HYBRID

SUGGESTED FORK SPRING WITH OUR CARTRIDGE
(140/160/180/200/220/240 LBS without gear)

 30,30,35,40,40,45,
COMMENTS 29er has 190 mm travel
COMMENTS Low HTA 62 deg
