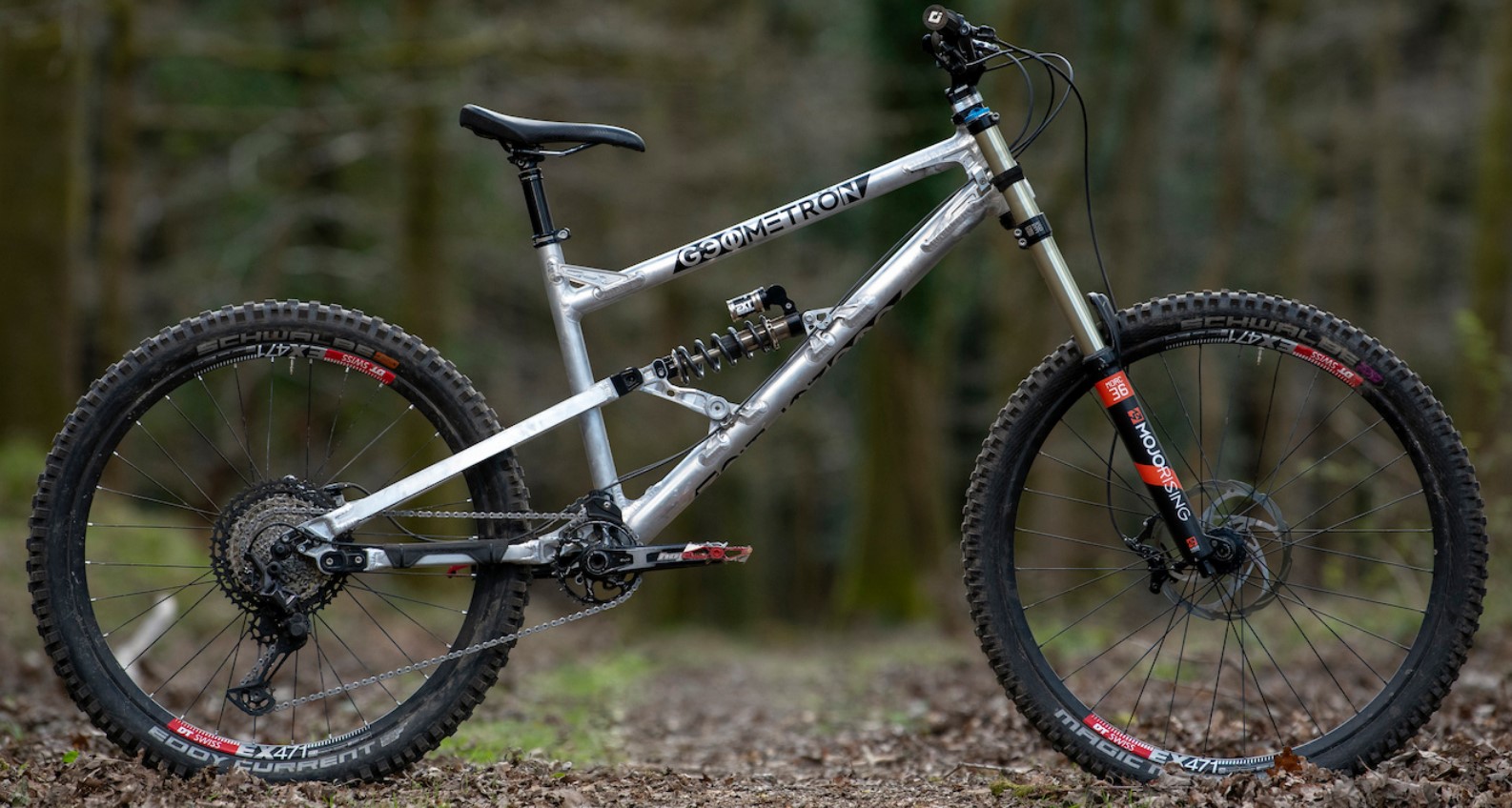

2020 GEOMETRON G1 175

MODEL VERSION YEARS 2020-
TIRE SIZE 29 Front, 29 or 27.5 Rear
FRAME MATERIAL ALLOY (alum)
BIKE WEIGHT (lbs) 37.7
SHOCK SIZE 230 x 65
TRAVEL MM 175
UPPER REDUCER
LOWER REDUCER
LINKAGE HORST FOUR BAR (PROGRESSIVE)
AVERAGE LEVERAGE 2.69
STARTING LEVERAGE 3.41
SAG POINT LEVERAGE 2.92
ENDING LEVERAGE 2.27
PROGRESSION % 33.4

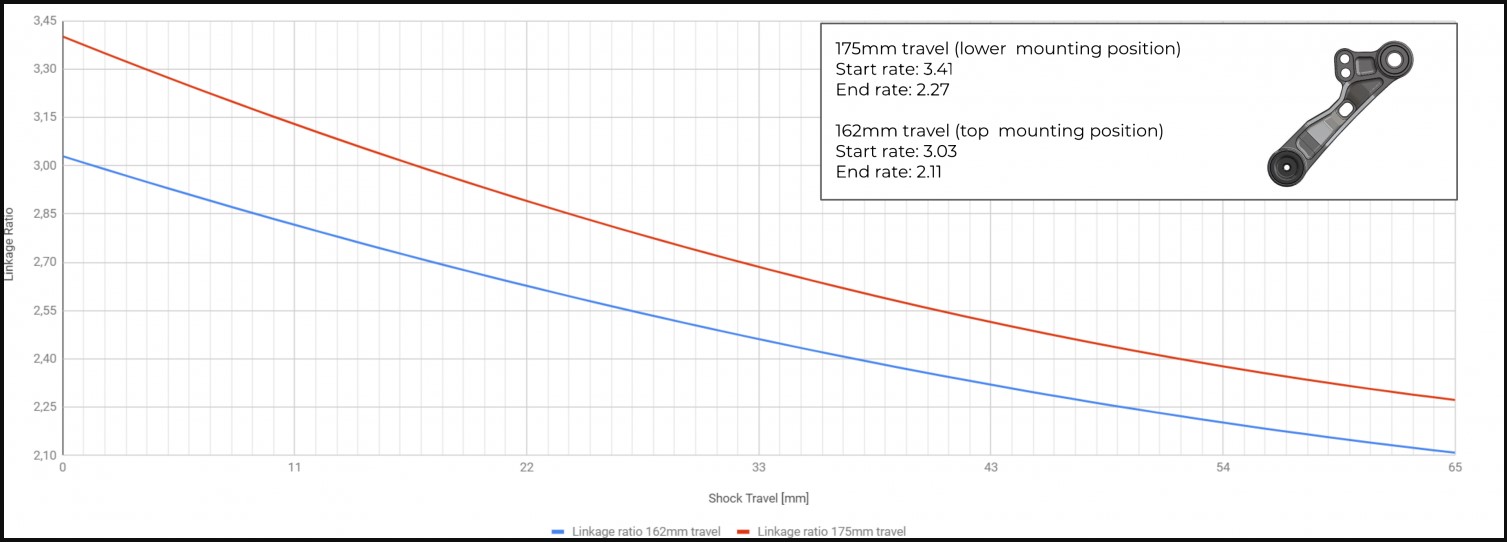

LEVERAGE CURVE PL

Installed PicturesInstalled Views

SHOCK TUNE PROGRESSIVE PL
OEM SHOCK EXT STORIA LOC V3
UPGRADE OPTION BOMBER CR
UPGRADE OPTION FOX DHX

SUGGESTED SHOCK SPRING
(140/160/180/200/220/240 LBS without gear)

 350,400,450,500,550,600,
HEAD TUBE ANGLE 62.5
RECOMMENDED FORK TRAVEL 170
OEM FORK EXT ERA
UPGRADE OPTION CARTRIDGE/SPRING FOX 38 HYBRID
UPGRADE OPTION CARTRIDGE/SPRING ROCKSHOX ZEB HYBRID

SUGGESTED FORK SPRING WITH OUR CARTRIDGE
(140/160/180/200/220/240 LBS without gear)

 35,40,45,50,50,55,
COMMENTS 2 mounting positions for shock, top 162 mm 30%, and lower175 mm 33% progression
COMMENTS Fork travel 170-190 mm
