Bike Build Specs

CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help

LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD

All data is our best estimate based on the information provided online

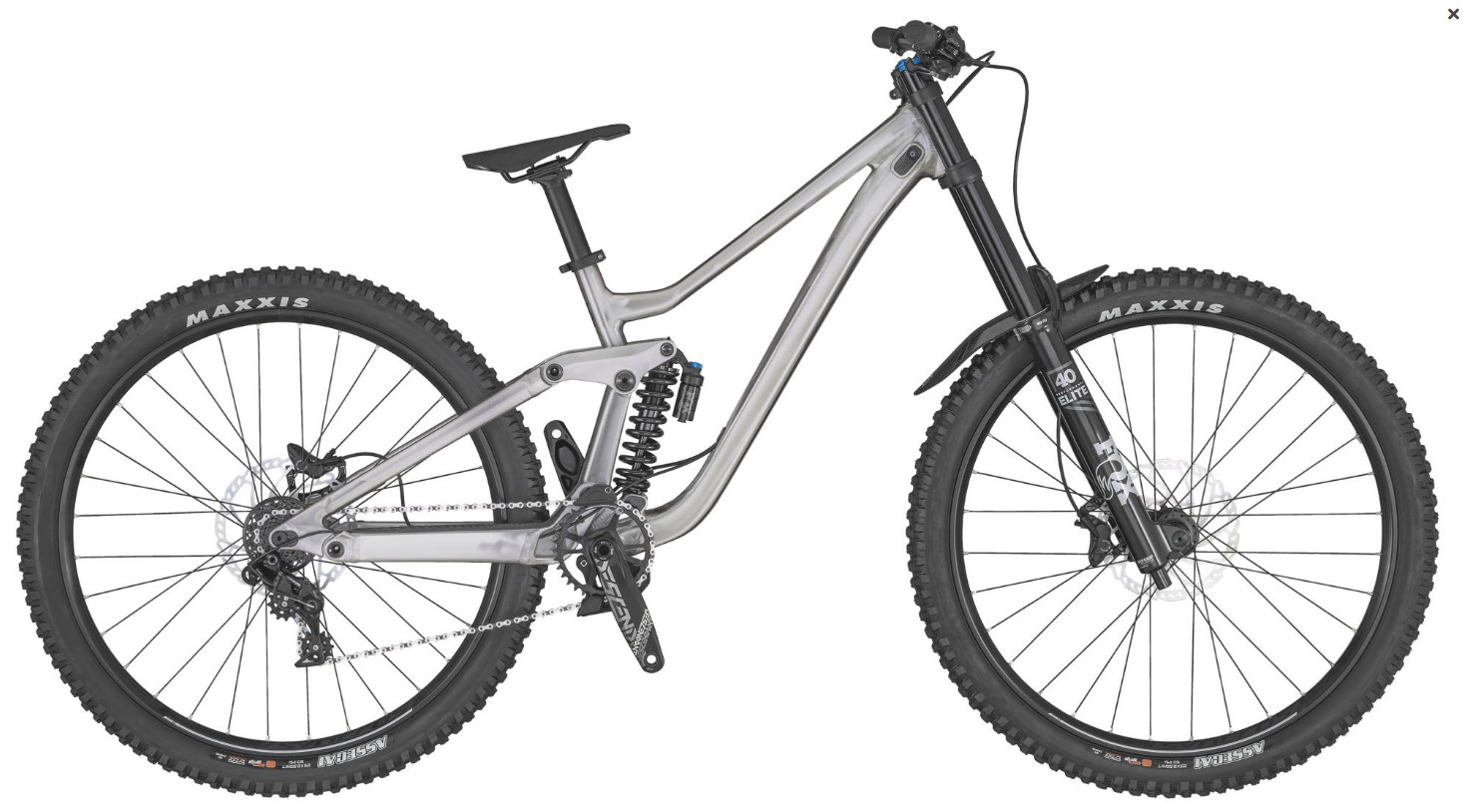

2020 SCOTT Gambler

MODEL VERSION YEARS 2020-2021
TIRE SIZE 29
FRAME MATERIAL ALLOY (alum)
BIKE WEIGHT (lbs) 38
SHOCK SIZE 225 x 75,T
TRAVEL MM 200
UPPER REDUCER 60.0 x 8.0
LOWER REDUCER 22.2 x 8.0
LINKAGE HORST FOUR BAR (PROGRESSIVE)
AVERAGE LEVERAGE 2.67
STARTING LEVERAGE 3.32
SAG POINT LEVERAGE 2.85
ENDING LEVERAGE 2.3
PROGRESSION % 30.7

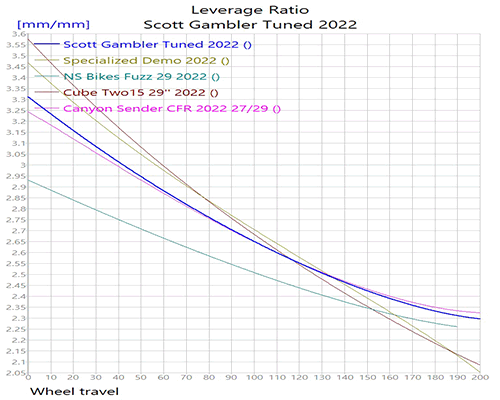

LEVERAGE CURVE HPL

Installed PicturesInstalled Views

SHOCK TUNE PROGRESSIVE HPL
OEM SHOCK FOX VANRC
UPGRADE OPTION BOMBER CR
UPGRADE OPTION AVALANCHE WOODIE

SUGGESTED SHOCK SPRING
(140/160/180/200/220/240 LBS without gear)

 350,350,400,450,500,550,
HEAD TUBE ANGLE 67.2
RECOMMENDED FORK TRAVEL 203
OEM FORK FOX 40 FLOAT
UPGRADE OPTION CARTRIDGE/SPRING FOX 40 HYBRID OPEN BATH

SUGGESTED FORK SPRING WITH OUR CARTRIDGE
(140/160/180/200/220/240 LBS without gear)

 30,30,35,40,40,45,
COMMENTS 4 position Flip Chip-Prog/liners/AHTA 66.7/67.2, can use 27.5 tires, carbon available,
COMMENTS Chain stay 435/450 mm
