Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online

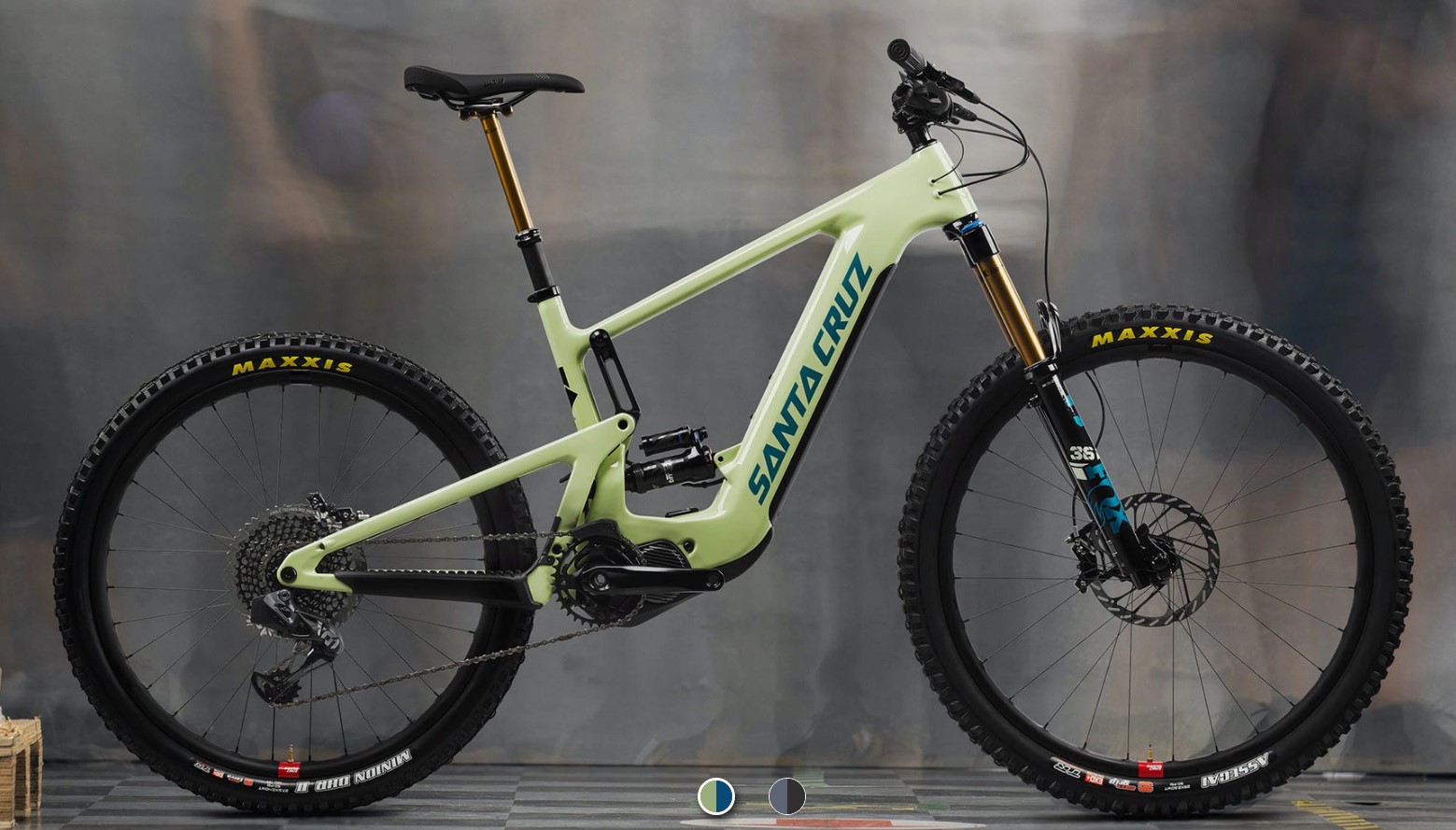

2020 SANTA CRUZ Heckler 8 Cc
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 29 Front 27.5 Rear |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 50 |
| SHOCK SIZE | 230 x 65 |
| TRAVEL MM | 165 |
| UPPER REDUCER | 30.0 x 8.0 |
| LOWER REDUCER | 30.0 x 8.0 |
| LINKAGE | VP (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.54 |
| STARTING LEVERAGE | 3.55 |
| SAG POINT LEVERAGE | 3.15 |
| ENDING LEVERAGE | 2.32 |
| PROGRESSION % | 34.65 |

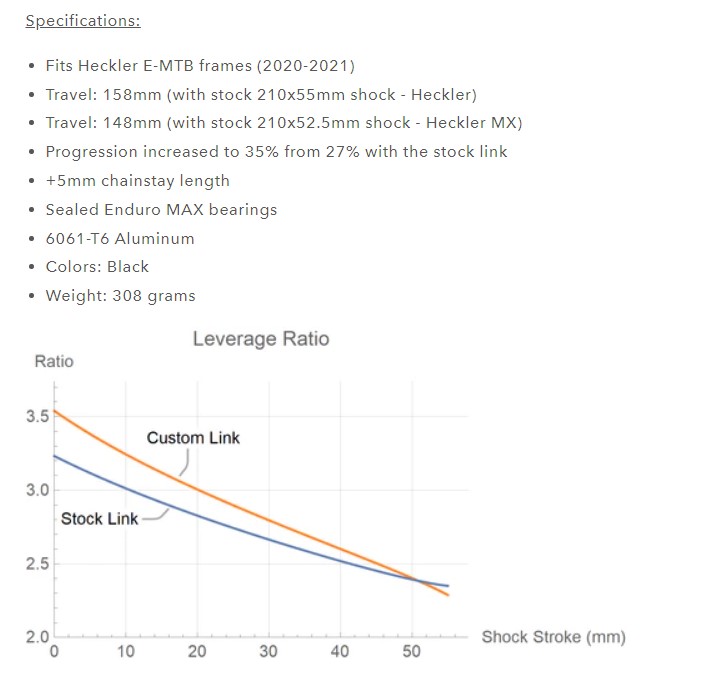

| LEVERAGE CURVE | PB
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PB |
| OEM SHOCK | ROCKSHOX SUPER DELUXE |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX FLOAT X |
| SUGGESTED SHOCK SPRING | 350,400,450,500,550,600, |
| HEAD TUBE ANGLE | 64.8 |
| RECOMMENDED FORK TRAVEL | 170 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 38 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX ZEB HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 40,40,45,50,55,60, |
| COMMENTS | lower bushing is bearing style |
| COMMENTS | Cascade link 65 mm shock, travel 165 mm, 35% progression |
