All data is our best estimate based on the information provided online

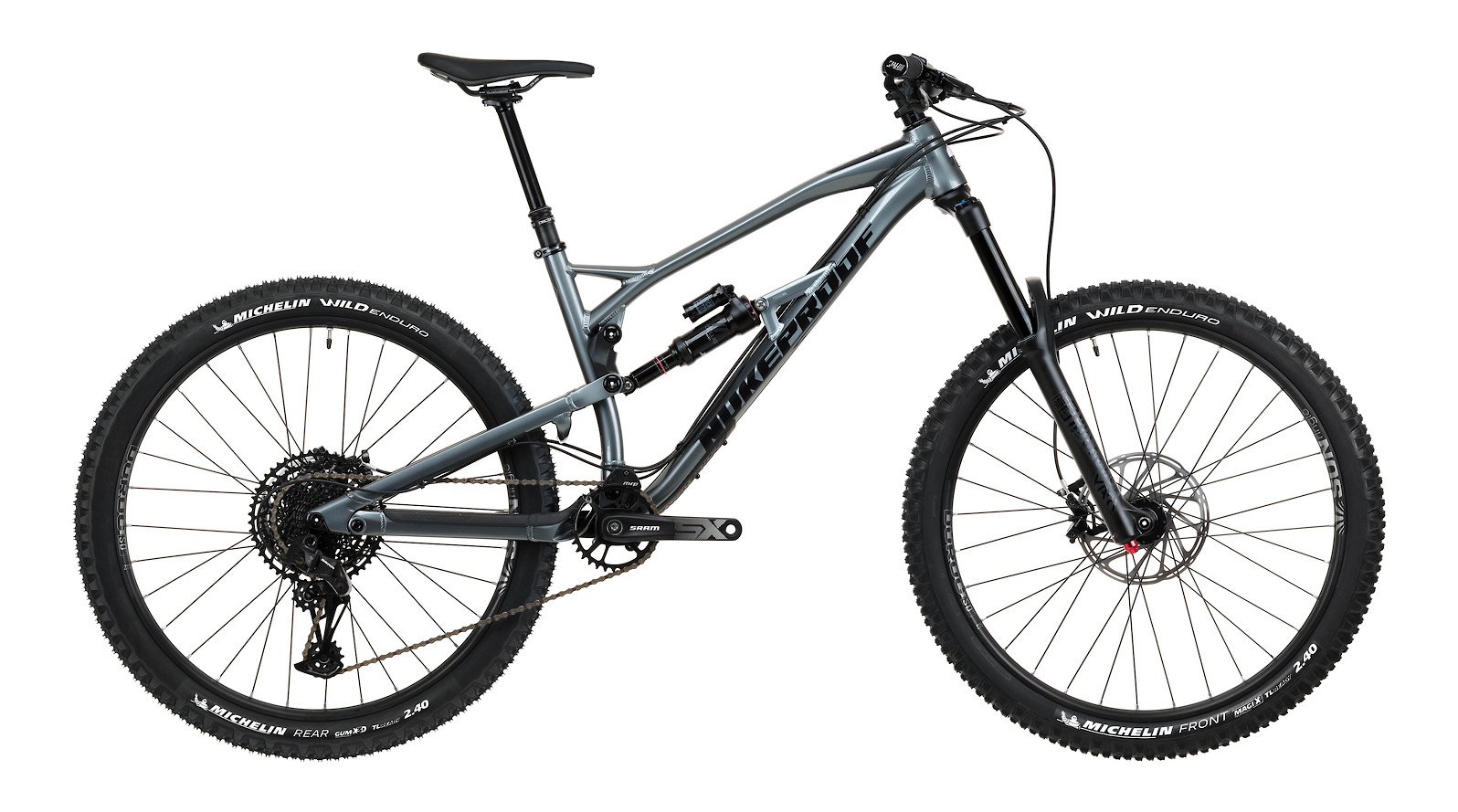

2020 NUKEPROOF MEGA V3
| MODEL VERSION YEARS | 2019-2020 |
|---|---|
| TIRE SIZE | 27.5 or 29 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 34 |
| SHOCK SIZE | 230 x 65 |
| TRAVEL MM | 165 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | HORST FOUR BAR (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.54 |
| STARTING LEVERAGE | 2.6 |
| SAG POINT LEVERAGE | 2.76 |
| ENDING LEVERAGE | 2.15 |
| PROGRESSION % | 17.3 |

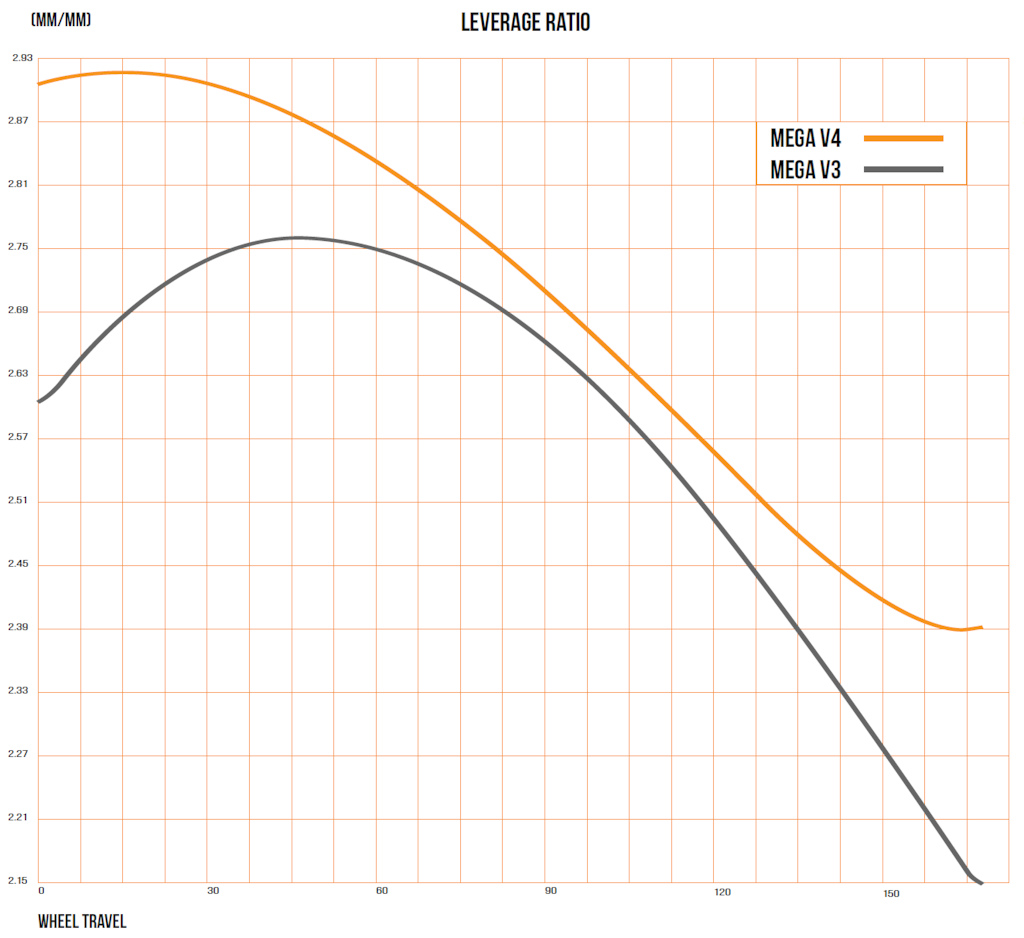

| LEVERAGE CURVE | RP
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | REGRESSIVE/PROGRESSIVE RP |
| OEM SHOCK | ROCKSHOX SUPER DELUXE |
| UPGRADE OPTION | |
| SUGGESTED SHOCK SPRING | 350,400,400,450,500,550, |
| HEAD TUBE ANGLE | 65.0 |
| RECOMMENDED FORK TRAVEL | 170 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX ZEB HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | Fox 38 HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,45,45,50,55, |
| COMMENTS | 29er 160 mm travel |
| COMMENTS |
