Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online

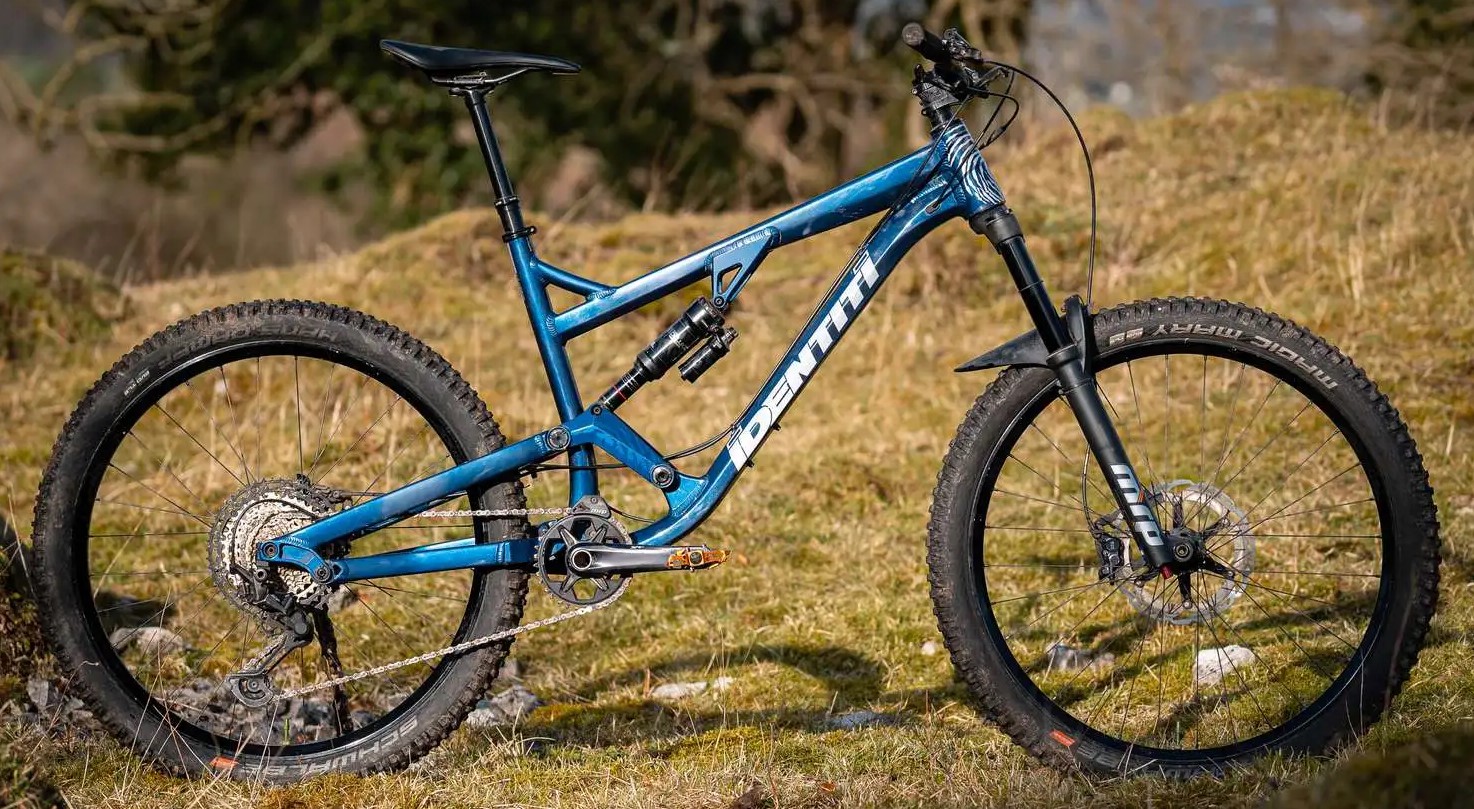

2020 IDENTITI Mettle MK2 V2
| MODEL VERSION YEARS | 2020- |
|---|---|
| TIRE SIZE | 27.5 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 35 |
| SHOCK SIZE | 230 x 60 |
| TRAVEL MM | 160 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | FOUR BAR (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.67 |
| STARTING LEVERAGE | 2.85 |
| SAG POINT LEVERAGE | 2.75 |
| ENDING LEVERAGE | 2.40 |
| PROGRESSION % | 15.79 |
| LEVERAGE CURVE | PL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PL |
| OEM SHOCK | ROCKSHOX SUPER DELUXE |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | SUPER DELUXE COIL MY23 |
| SUGGESTED SHOCK SPRING | 400,450,500,550,600,650, |
| HEAD TUBE ANGLE | 64.5 |
| RECOMMENDED FORK TRAVEL | 170 |
| OEM FORK | MRP RIBBON AIR |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX ZEB HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,45,45,50,55, |
| COMMENTS | Best estimate of leverage |
| COMMENTS |
