Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online

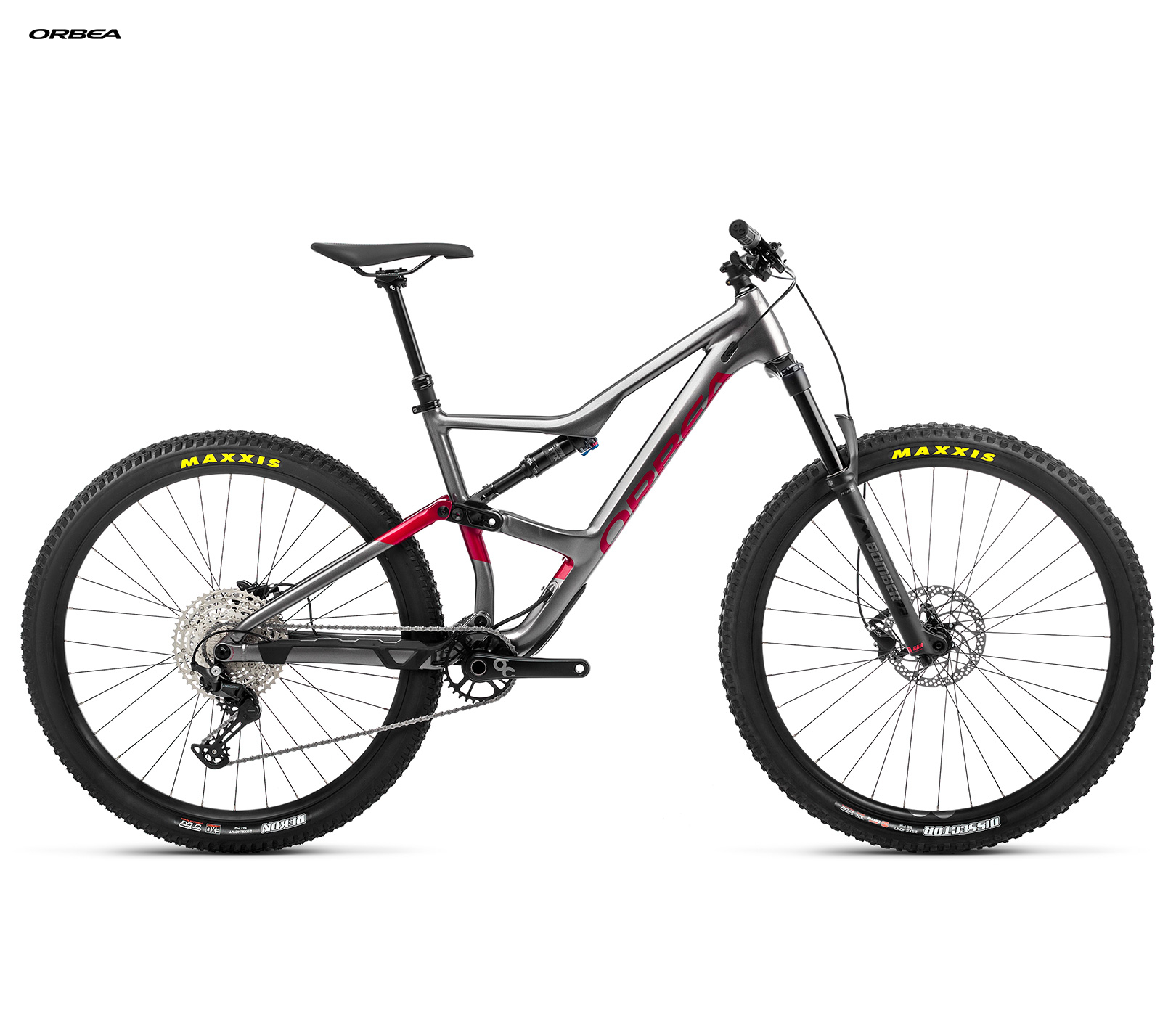

2020 ORBEA Occam H30
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 32 |
| SHOCK SIZE | 210 x 55 |
| TRAVEL MM | 135 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | YOKE FOUR BAR (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.45 |
| STARTING LEVERAGE | 3.16 |
| SAG POINT LEVERAGE | 2.92 |
| ENDING LEVERAGE | 2.62 |
| PROGRESSION % | 17.1 |

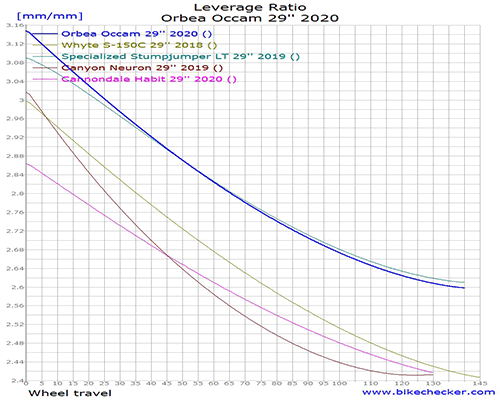

| LEVERAGE CURVE | PBLE
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PBLE |
| OEM SHOCK | FOX FLOAT DPS |
| UPGRADE OPTION | BOMBER CR |
| SUGGESTED SHOCK SPRING | 400,450,500,550,600,600, |
| HEAD TUBE ANGLE | 65.5 |
| RECOMMENDED FORK TRAVEL | 140 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 40,45,50,55,60,65, |
| COMMENTS | sm 66 HTA, yoke mount short extension |
| COMMENTS |
