All data is our best estimate based on the information provided online

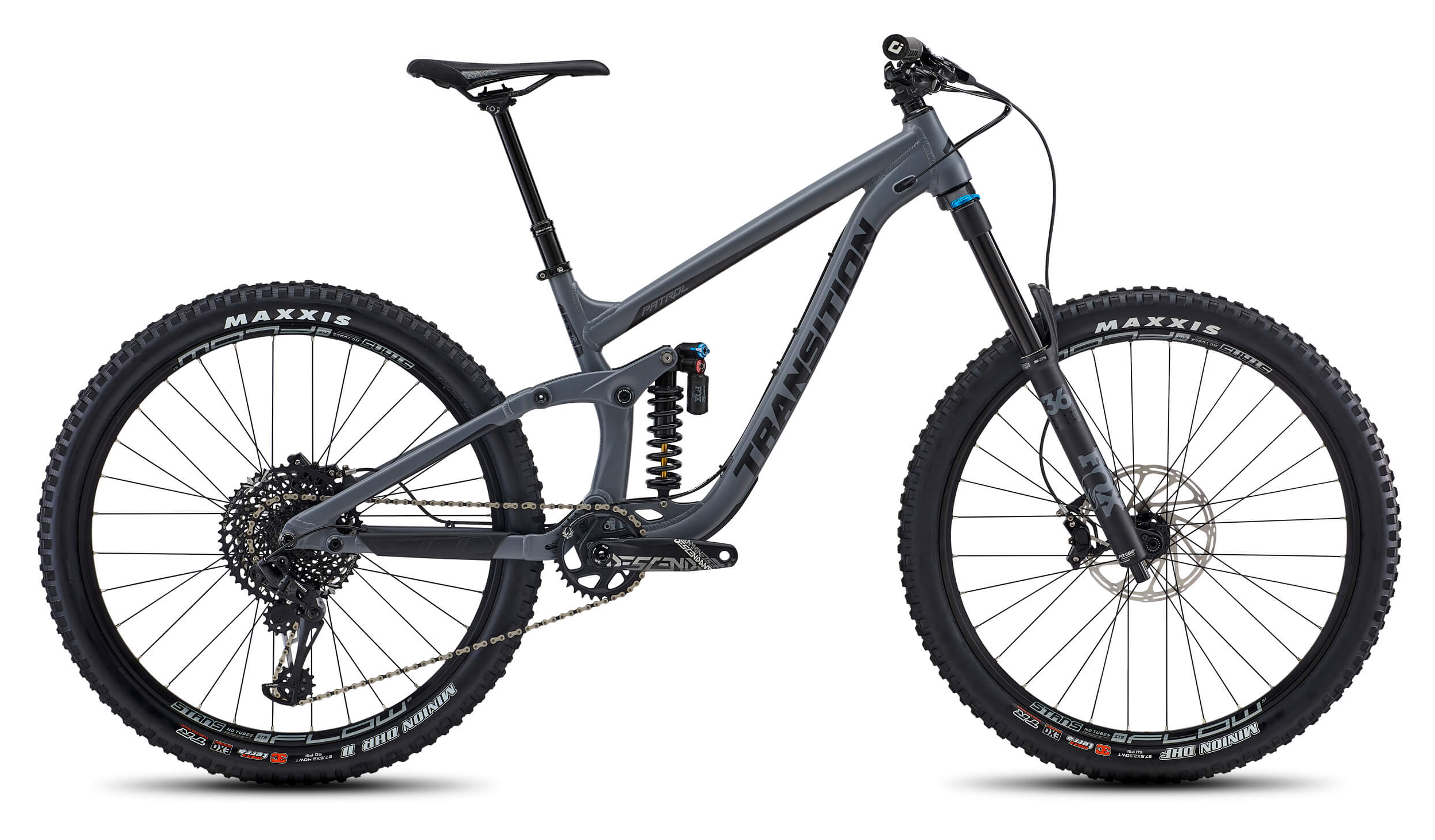

2020 TRANSITION Patrol Alloy Cascade
| MODEL VERSION YEARS | 2019-2020 |
|---|---|
| TIRE SIZE | 27.5 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 33 |
| SHOCK SIZE | 205 x 65,T |
| TRAVEL MM | 168 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | FOUR BAR (SLIGHT PROGRESSION) |
| AVERAGE LEVERAGE | 2.58 |
| STARTING LEVERAGE | 2.98 |
| SAG POINT LEVERAGE | 2.65 |
| ENDING LEVERAGE | 2.25 |
| PROGRESSION % | 24.50 |

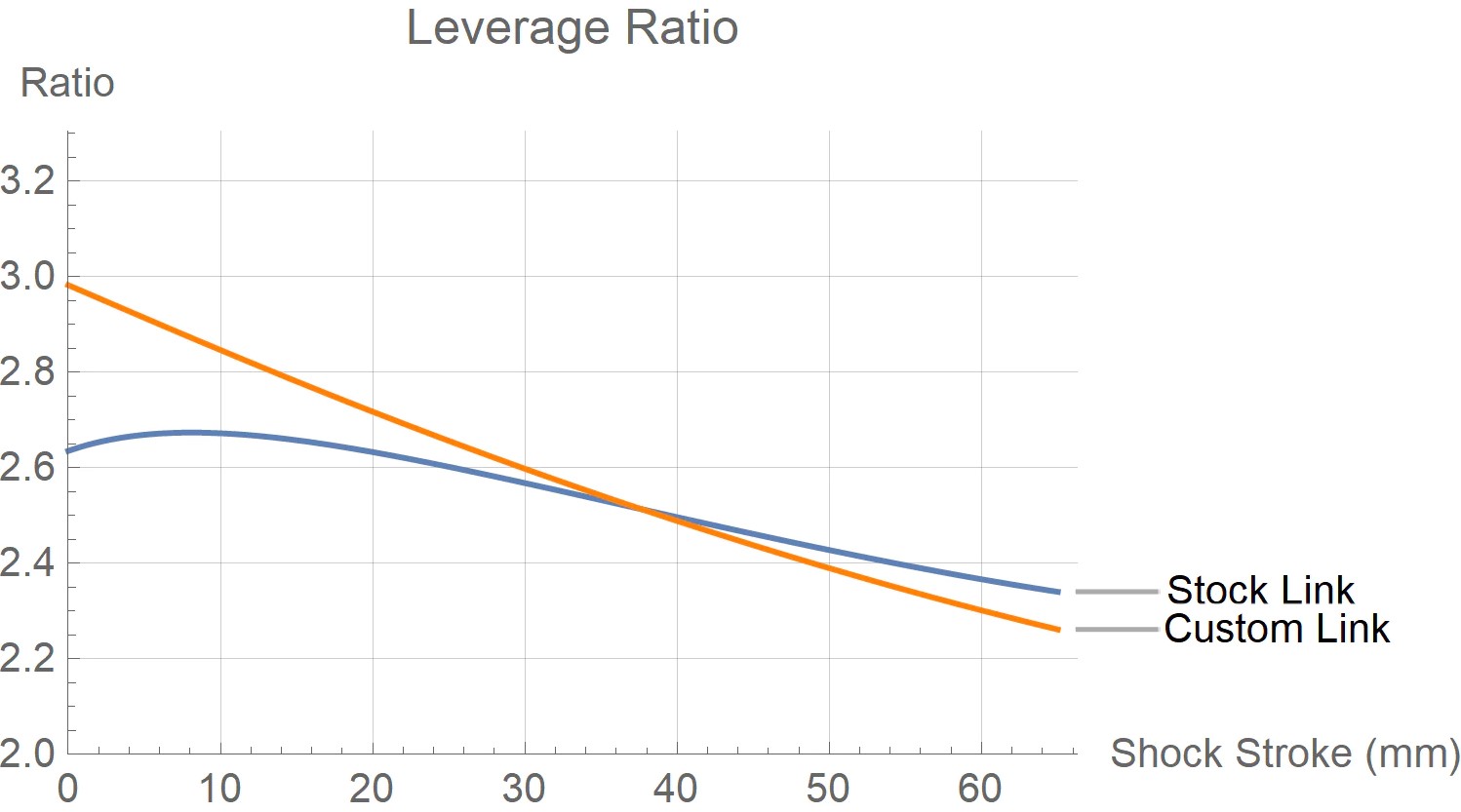

| LEVERAGE CURVE | PL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | 4-BAR PL |
| OEM SHOCK | FOX FLOAT DPX2 |
| OEM SHOCK | FOX FLOAT X2 |
| UPGRADE OPTION | BOMBER CR |
| SUGGESTED SHOCK SPRING | 350,400,450,450,500,550, |
| HEAD TUBE ANGLE | 64.0 |
| RECOMMENDED FORK TRAVEL | 160 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,45,50,55,60, |
| COMMENTS | carbon needs reservoir shorter by 10 mm and extended shaft(with 61 mm travel) |
| COMMENTS | Fits 2019-2020 Carbon, 2018-2020 Alloy |
