Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online

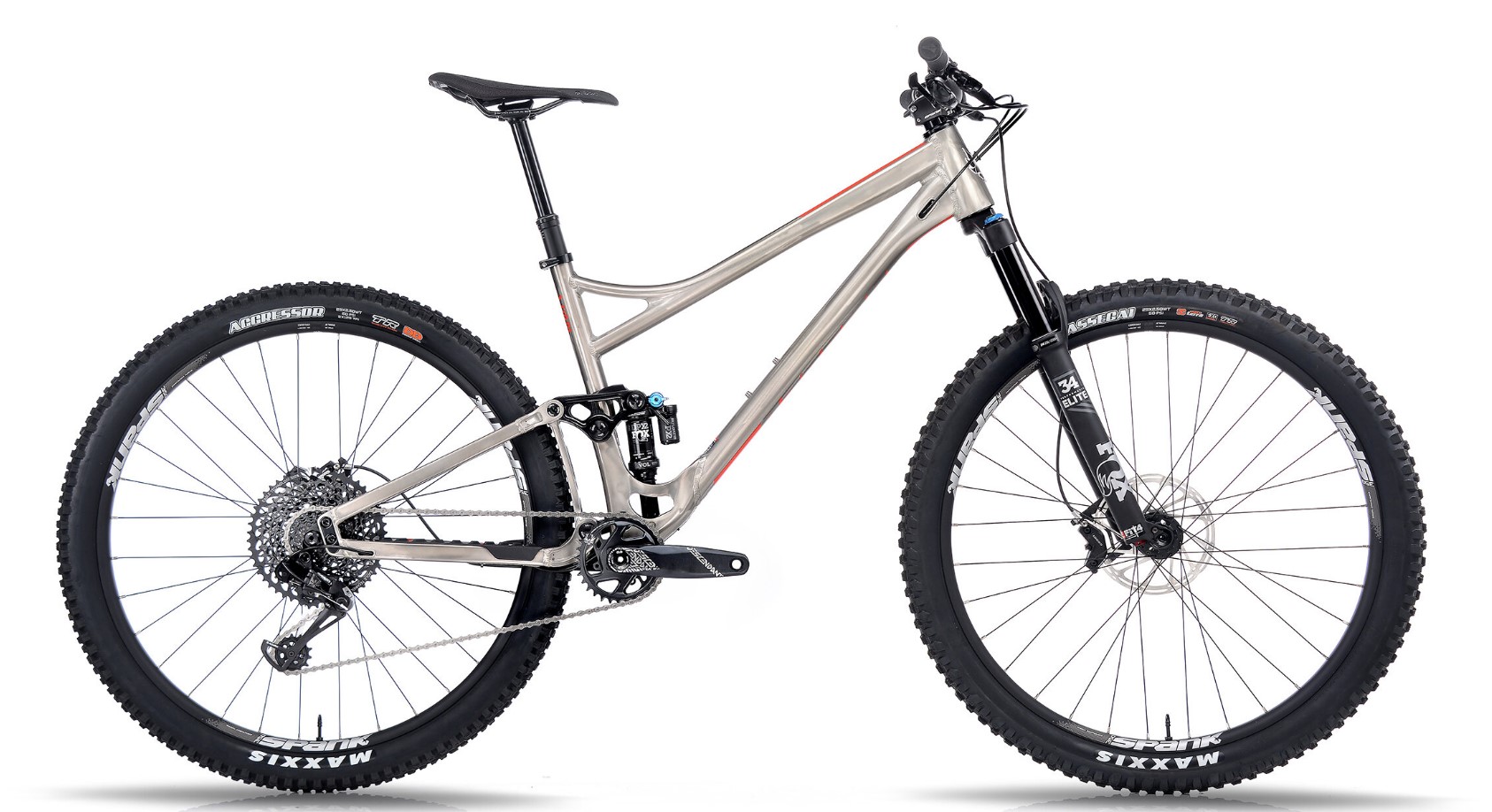

2020 BANSHEE Phantom V3
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 27.5 or 29 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 32 |
| SHOCK SIZE | 185 x 50,T |
| TRAVEL MM | 115 |
| UPPER REDUCER | Trunnion x 10.0 |
| LOWER REDUCER | 30.0 x 8.0 |
| LINKAGE | FLOATING PIVOT UPPER/LOWER |

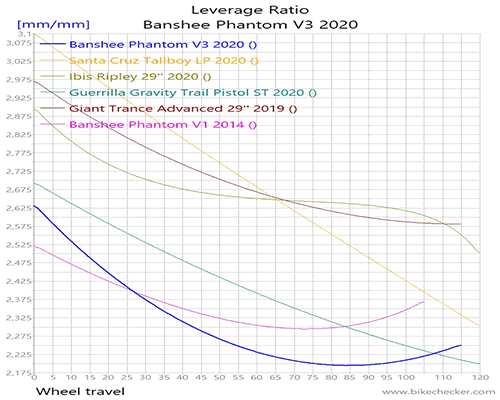

| AVERAGE LEVERAGE | 2.30 |
| STARTING LEVERAGE | 2.625 |
| SAG POINT LEVERAGE | 2.325 |
| ENDING LEVERAGE | 2.225 |
| PROGRESSION % | 15.2 |

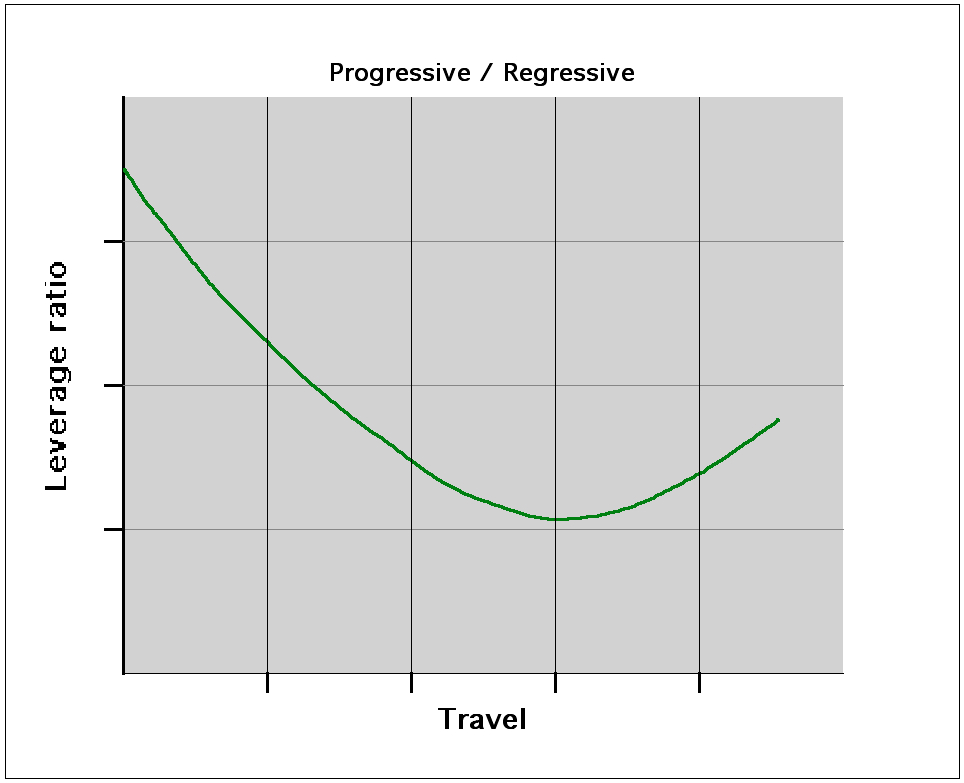

| LEVERAGE CURVE | PR
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE/LINEAR PR |
| OEM SHOCK | FOX FLOAT DPX2 |
| UPGRADE OPTION | FOX FLOAT DPS |
| UPGRADE OPTION | FOX FLOAT X |
| UPGRADE OPTION | FOX FLOAT DPX2 |
| SUGGESTED SHOCK SPRING | 350,400,450,500,550,600, |
| HEAD TUBE ANGLE | 66.5 |
| RECOMMENDED FORK TRAVEL | 130 |
| OEM FORK | FOX 34 FLOAT 29 |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 50,55,65,70,75,85, |
| COMMENTS | Compact and long dropouts, optional 66 HTA |
| COMMENTS |
