Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online

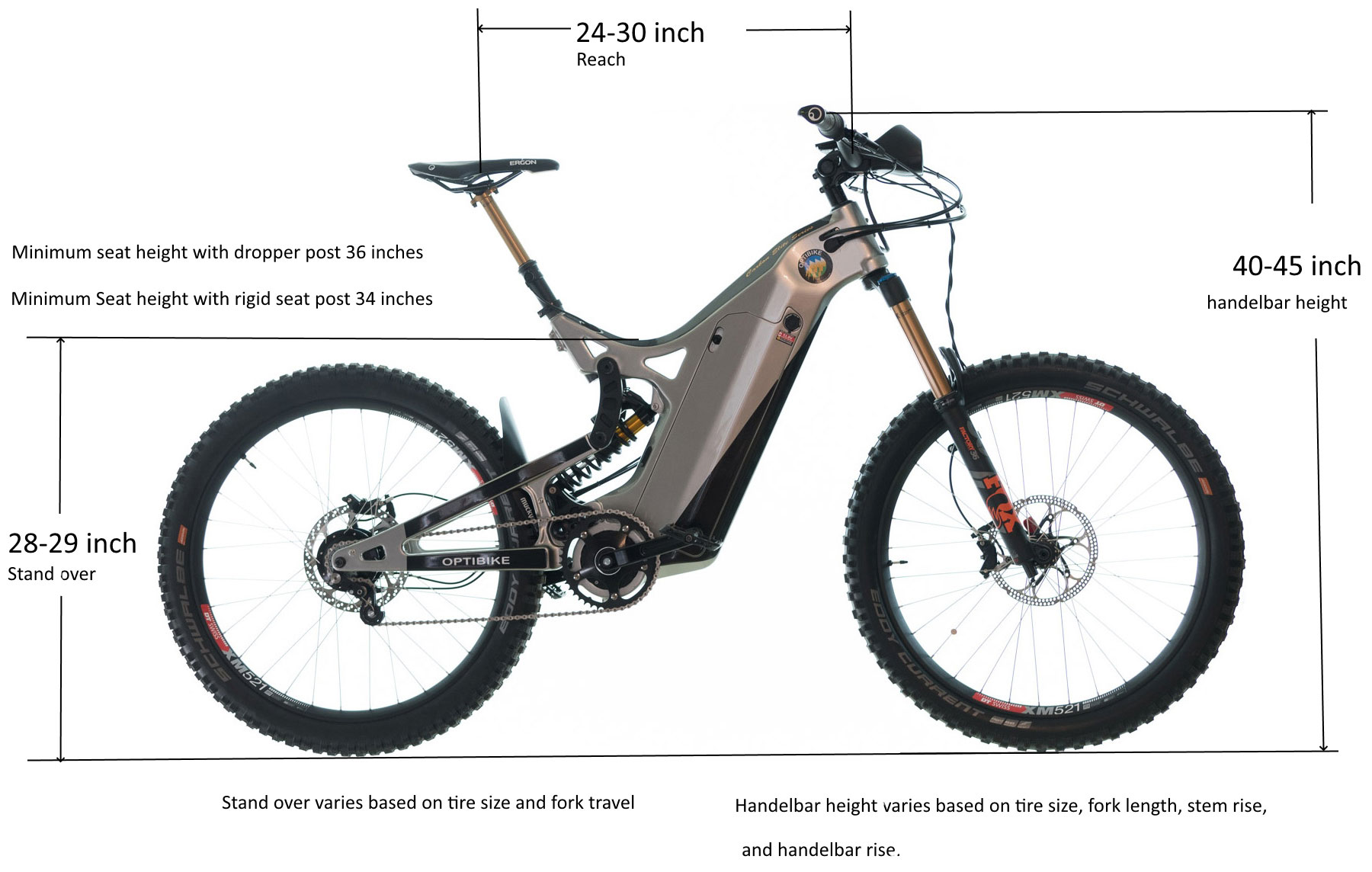

2020 OPTIBIKE R15C
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 90 |
| SHOCK SIZE | 240 x 76 |
| TRAVEL MM | 203 |
| UPPER REDUCER | 25.0 x 8.0 |
| LOWER REDUCER | 25.0 x 8.0 |
| LINKAGE | FLOATING PIVOT UPPER/LOWER |
| AVERAGE LEVERAGE | 2.67 |
| STARTING LEVERAGE | 4.3 |
| SAG POINT LEVERAGE | 2.8 |
| ENDING LEVERAGE | 2.3 |
| PROGRESSION % | 46.5 |
| LEVERAGE CURVE | HPL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE HPL |
| OEM SHOCK | Cane Creek DBKitsuma |
| UPGRADE OPTION | AVALANCHE WOODIE |
| UPGRADE OPTION | FOX VANRC |
| UPGRADE OPTION | ROCKSHOX KAGE |
| SUGGESTED SHOCK SPRING | 350,400,450,500,500,550, |
| HEAD TUBE ANGLE | |
| RECOMMENDED FORK TRAVEL | 203 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | Fox 40 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX BOXXER HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 40,45,45,50,55,55, |
| COMMENTS | 90 lbs |
| COMMENTS | 4.3-2.3 to 1 |
