All data is our best estimate based on the information provided online

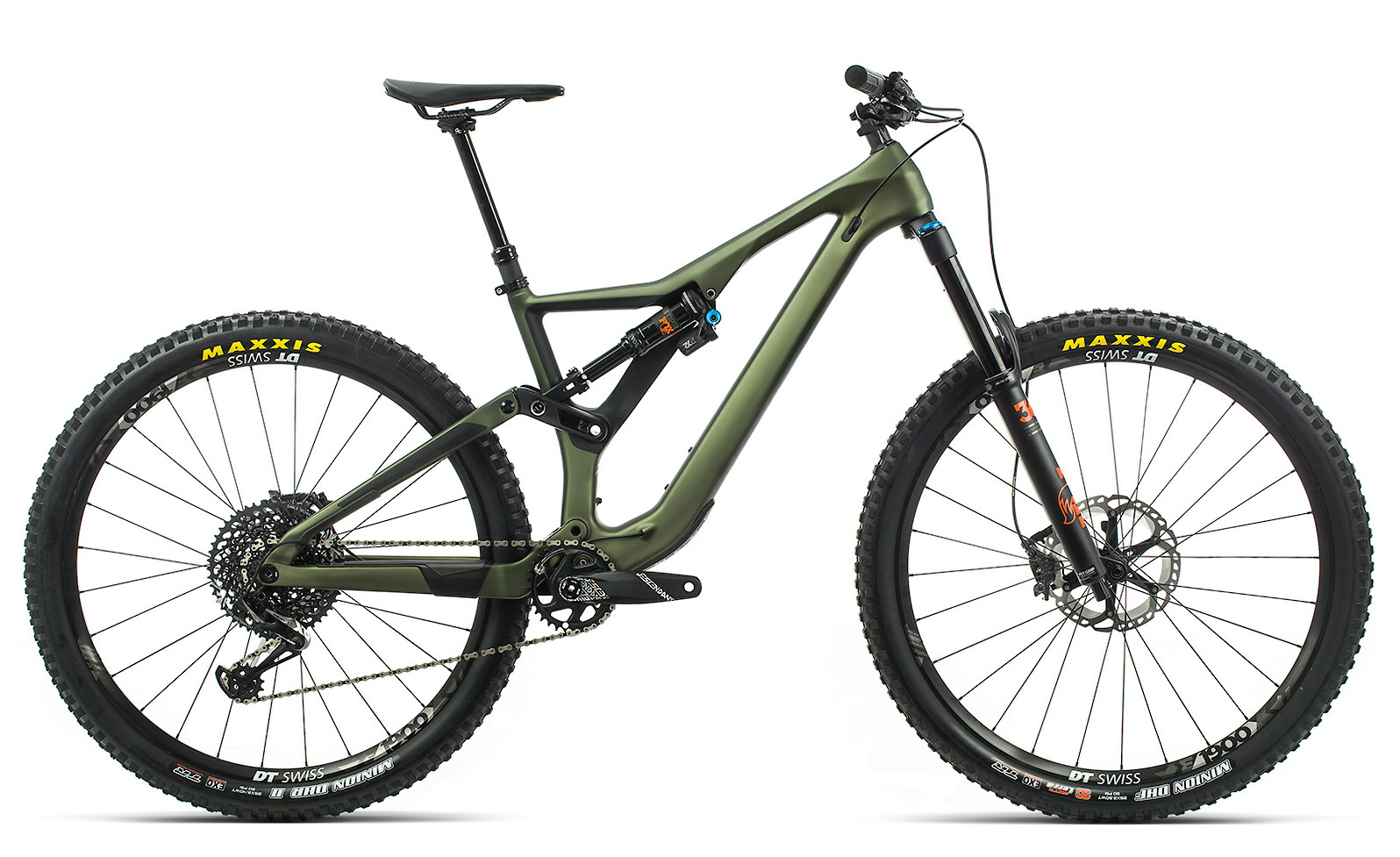

2020 ORBEA Rallon
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 32 |
| SHOCK SIZE | 230 x 60 |
| TRAVEL MM | 160 |
| UPPER REDUCER | 21.8 X 8 |
| LOWER REDUCER | 16.45 x 8.0 |
| LINKAGE | FOUR BAR Modified (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.67 |
| STARTING LEVERAGE | 2.98 |
| SAG POINT LEVERAGE | 2.77 |
| ENDING LEVERAGE | 2.44 |
| PROGRESSION % | 18.12 |

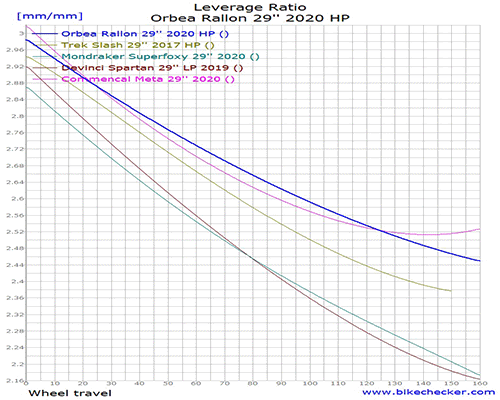

| LEVERAGE CURVE | PL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PL |
| OEM SHOCK | FOX FLOAT DPX2 |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX DHX |
| UPGRADE OPTION | FOX FLOAT X |
| SUGGESTED SHOCK SPRING | 400,450,500,550,600,600, |
| HEAD TUBE ANGLE | 65.0 |
| RECOMMENDED FORK TRAVEL | 160 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,45,50,55,60, |
| COMMENTS | 2020-2021, 90 deg rotation of eyelet, 64.5 lower position, 62.5 max stroke |
