Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online

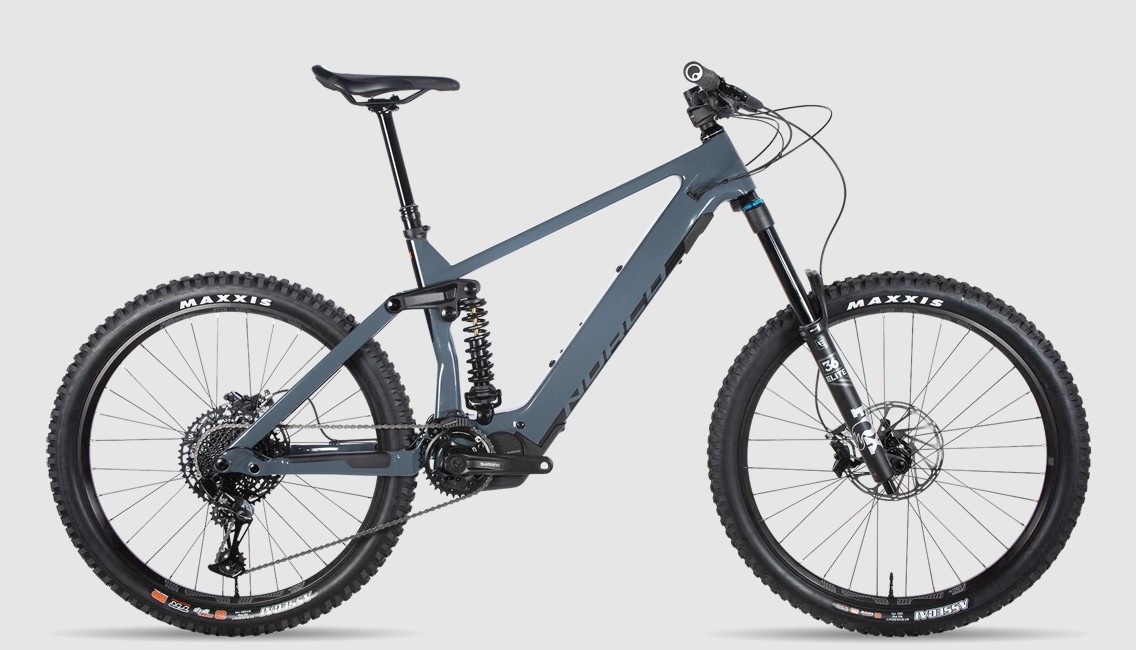

2020 NORCO Range VLT C2
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 27.5 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 55 |
| SHOCK SIZE | 205 x 60,T |
| TRAVEL MM | 170 |
| UPPER REDUCER | Trunnion x 10.0 |
| LOWER REDUCER | |
| LINKAGE | FOUR BAR (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.83 |
| STARTING LEVERAGE | 3.1 |
| SAG POINT LEVERAGE | 2.85 |
| ENDING LEVERAGE | 2.5 |
| PROGRESSION % | 19.35 |
| LEVERAGE CURVE | PL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PL |
| OEM SHOCK | |
| UPGRADE OPTION | |
| SUGGESTED SHOCK SPRING | 450,500,550,600,650,700, |
| HEAD TUBE ANGLE | 63.5 |
| RECOMMENDED FORK TRAVEL | 170 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 38 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX ZEB HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 40,45,50,50,55,60, |
| COMMENTS | 2020-202, best guess at leverage |
| COMMENTS |
