2020 IBIS Ripmo V2 AF
| MODEL VERSION YEARS | 2020- |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 32 |
| SHOCK SIZE | 210 x 55 |
| TRAVEL MM | 147.3 |
| UPPER REDUCER | 25.0 x 8.0 |
| LOWER REDUCER | 15.2 X 8 |
| LINKAGE | Yoke (Progressive) |
| AVERAGE LEVERAGE | 2.68 |
| STARTING LEVERAGE | 3.15 |
| SAG POINT LEVERAGE | 2.7 |
| ENDING LEVERAGE | 2.52 |
| PROGRESSION % | 20.0 |

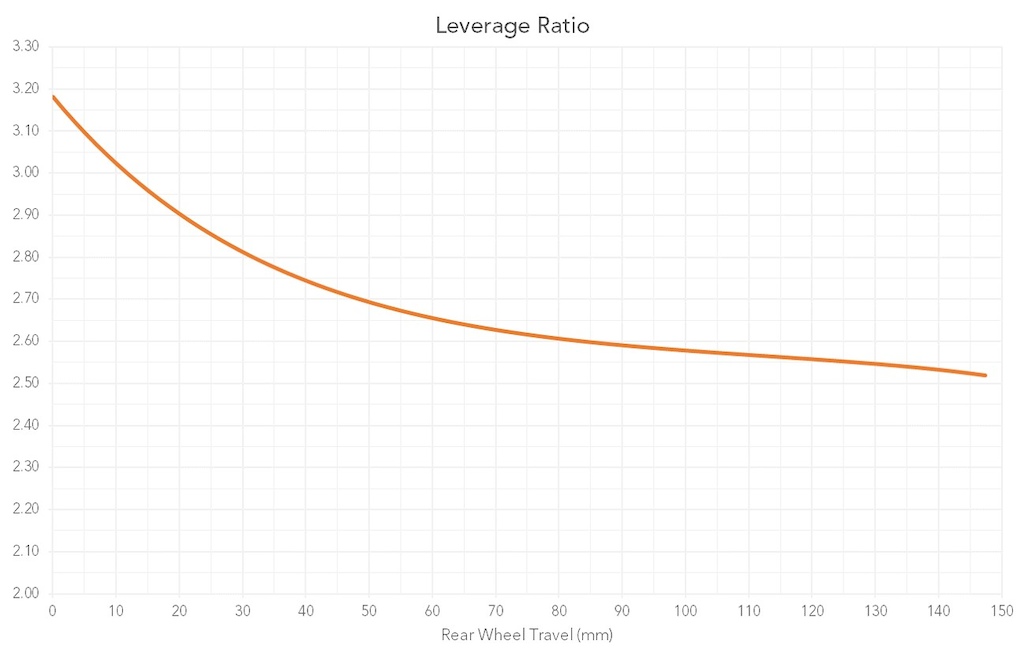

| LEVERAGE CURVE | PBLE
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PBLE |
| OEM SHOCK | FOX FLOAT DPS |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX VANRC |
| UPGRADE OPTION | FOX DHX |
| SUGGESTED SHOCK SPRING | 400,450,500,600,650,700, |
| HEAD TUBE ANGLE | 64.9 |
| RECOMMENDED FORK TRAVEL | 160 |
| OEM FORK | DVO |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,45,50,55,60, |
| COMMENTS | 20.8 % progression, Cascade Link 32% progression |
| COMMENTS | small frame is tight to top tube |
