All data is our best estimate based on the information provided online

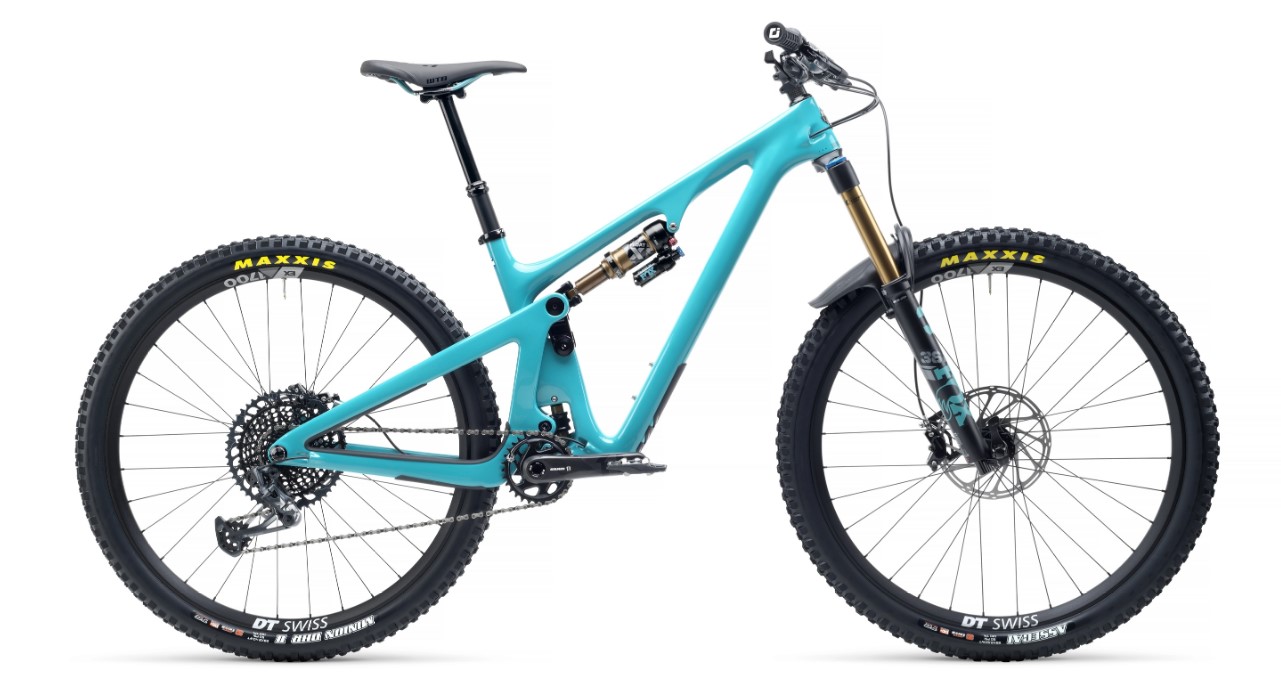

2020 YETI SB130 LR
| MODEL VERSION YEARS | 2020-2022 |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 27 |
| SHOCK SIZE | 210 x 55 |
| TRAVEL MM | 137 |
| UPPER REDUCER | 36.0 x 8.0 |
| LOWER REDUCER | 12.7 fitted x 8.0 |
| LINKAGE | SLIDING PIVOT (LOW LEVERAGE LINEAR) |
| AVERAGE LEVERAGE | 2.49 |
| STARTING LEVERAGE | 2.62 |
| SAG POINT LEVERAGE | 2.54 |
| ENDING LEVERAGE | 2.24 |
| PROGRESSION % | 14.5 |

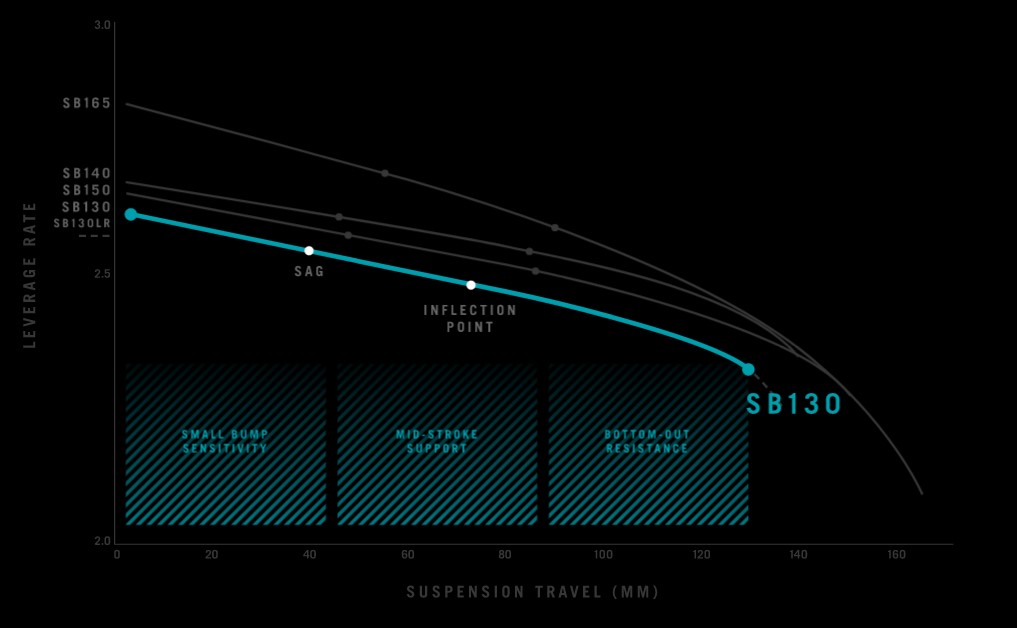

| LEVERAGE CURVE | LP
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE LP |
| OEM SHOCK | FOX FLOAT X |
| OEM SHOCK | FOX FLOAT DPS |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX FLOAT DPS PERFORMANCE |
| UPGRADE OPTION | FOX FLOAT X |
| SUGGESTED SHOCK SPRING | Not Coil Compatible |
| HEAD TUBE ANGLE | 65.5 |
| RECOMMENDED FORK TRAVEL | 160 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,45,50,55,60, |
| COMMENTS | 2020-2022, special pin from lower from yeti, Switch Infinity Link,33 % sag |
| COMMENTS | Cascade link 25%, 139 travel, 65 degree HTA |
