2020 TRANSITION Sentinel V2 alloy xxl
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 32 |
| SHOCK SIZE | 205 x 65,T |
| TRAVEL MM | 155 |
| UPPER REDUCER | Trunnion x 10.0 |
| LOWER REDUCER | |
| LINKAGE | FOUR BAR (SLIGHT PROGRESSION) |
| AVERAGE LEVERAGE | 2.38 |
| STARTING LEVERAGE | 2.85 |
| SAG POINT LEVERAGE | 2.55 |
| ENDING LEVERAGE | 2.10 |
| PROGRESSION % | 26.3 |

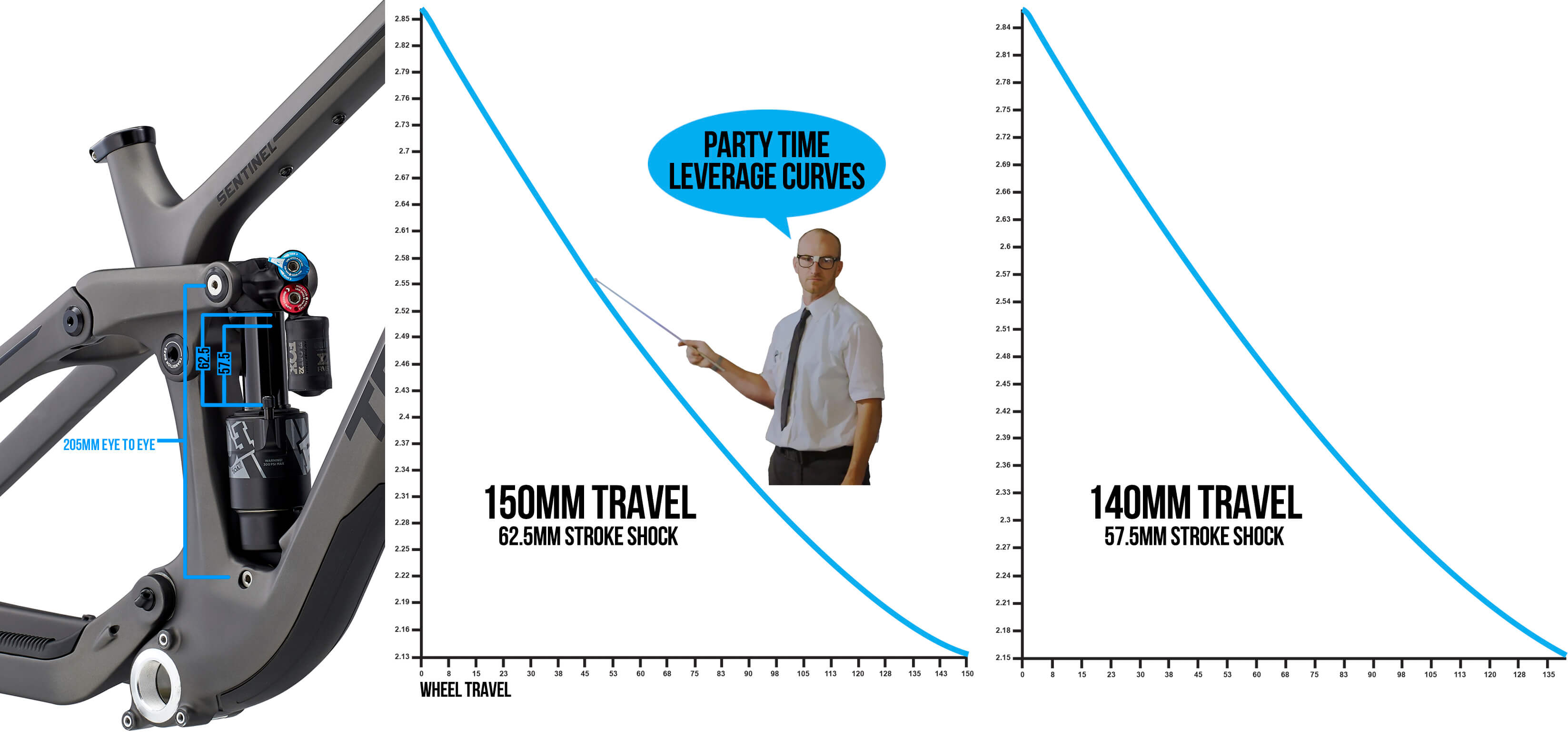

| LEVERAGE CURVE | PL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | 4-BAR PL |
| OEM SHOCK | FOX FLOAT DPX2 |
| UPGRADE OPTION | BOMBER CR |
| SUGGESTED SHOCK SPRING | 300,350,400,450,450,500, |
| HEAD TUBE ANGLE | 63.6 |
| RECOMMENDED FORK TRAVEL | 160 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,45,50,55,60, |
| COMMENTS | 2020 April-2022, carbon needs resevoir 10 nmm shorter, V2 is more progressive leverage, 24% alloy xxl can be 65 mm with clearance |
