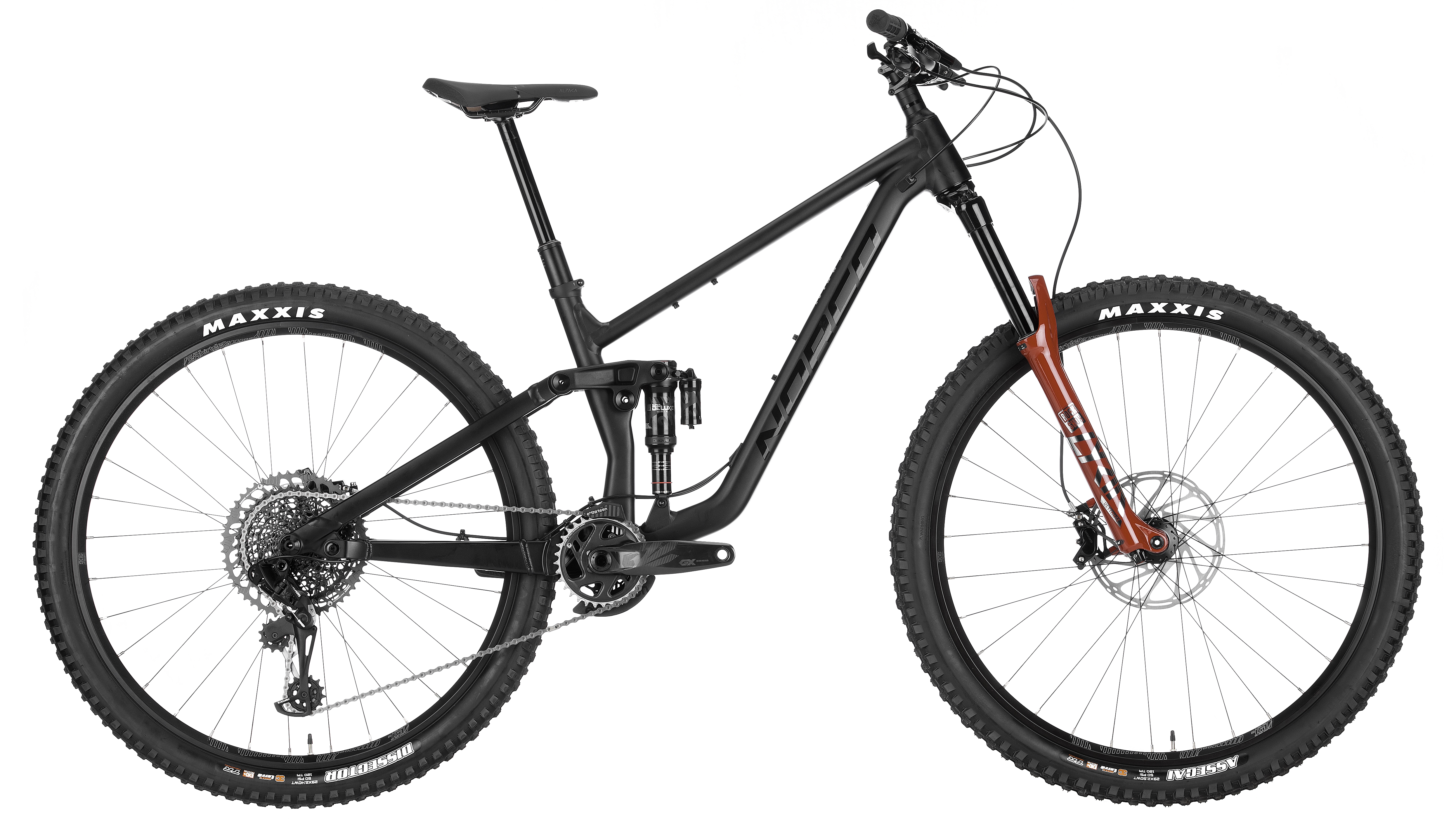

2020 NORCO Sight A1
| MODEL VERSION YEARS | 2020-2021 |
|---|---|
| TIRE SIZE | 27.5 or 29 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 33.5 |
| SHOCK SIZE | 185 x 52.5,T |
| TRAVEL MM | 150 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | FOUR BAR (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.86 |
| STARTING LEVERAGE | 3.25 |
| SAG POINT LEVERAGE | 2.97 |
| ENDING LEVERAGE | 2.63 |
| PROGRESSION % | 19.1 |

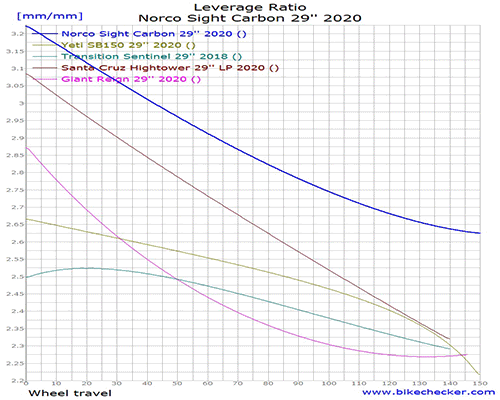

| LEVERAGE CURVE | PL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PL |
| OEM SHOCK | ROCKSHOX SUPER DELUXE |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX FLOAT X |
| SUGGESTED SHOCK SPRING | 450,550,600,650,700,750, |
| HEAD TUBE ANGLE | 63.5 |
| RECOMMENDED FORK TRAVEL | 160 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,45,50,55,60, |
| COMMENTS | RESERVOIR CLEARANCE IS AN ISSUE on carbon at 55, 64 deg HTA on 29er |
| COMMENTS |
