2020 ROCKY MOUNTAIN Slayer
| MODEL VERSION YEARS | 2020-2023 |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 34 |
| SHOCK SIZE | 230 x 65 |
| TRAVEL MM | 170 |
| UPPER REDUCER | 25.0 x 8.0 |
| LOWER REDUCER | 30.0 x 8.0 Bearing |
| LINKAGE | VP (REGRESSIVE/PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.62 |
| STARTING LEVERAGE | 3.0 |
| SAG POINT LEVERAGE | 2.92 |
| ENDING LEVERAGE | 2.0 |
| PROGRESSION % | 33.3 |

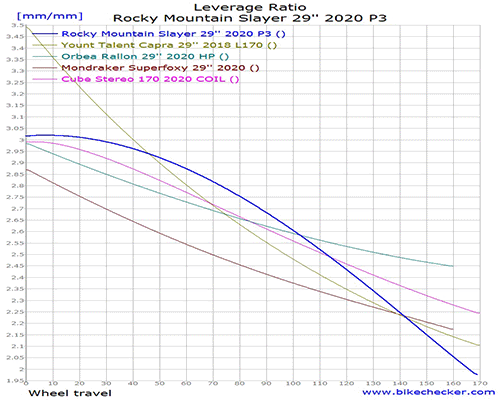

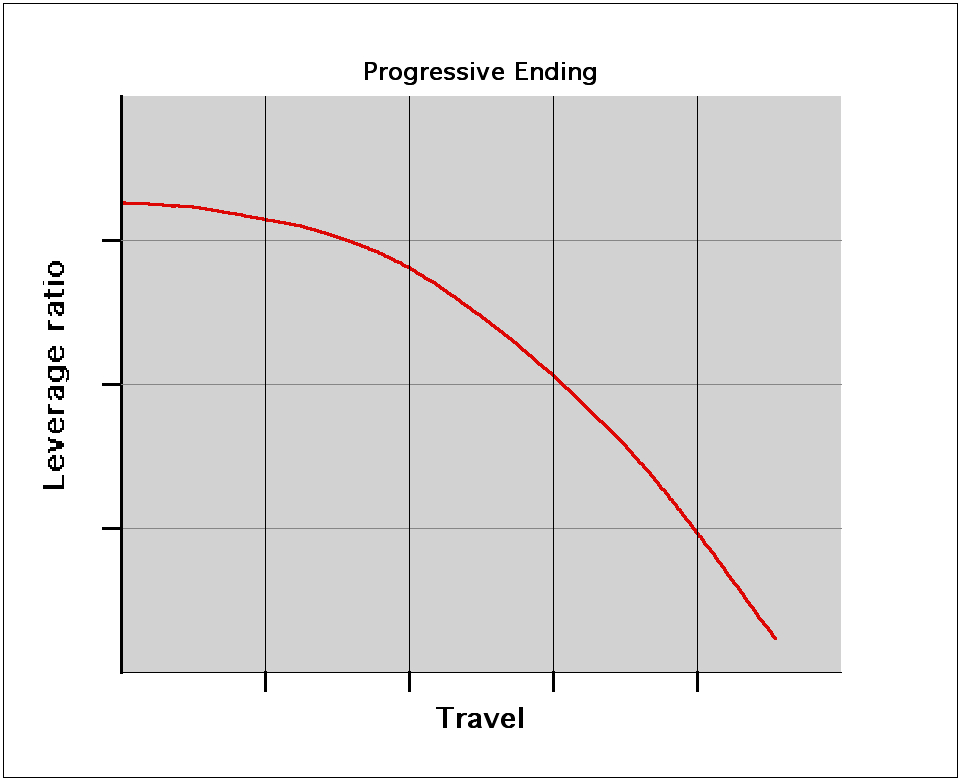

| LEVERAGE CURVE | PE
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PE |
| OEM SHOCK | ROCKSHOX COIL SUPER DELUXE |
| UPGRADE OPTION | BOMBER CR |
| SUGGESTED SHOCK SPRING | 350,400,450,500,500,550, |
| HEAD TUBE ANGLE | |
| RECOMMENDED FORK TRAVEL | 180 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX ZEB HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | Fox 38 HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 30,35,40,45,50,55, |
| COMMENTS | 2020-2023, 3.0-21.95 to 1slight regression in first 15 mm |
| COMMENTS | Ride 4 position P1 or P2 is least regression |
