All data is our best estimate based on the information provided online

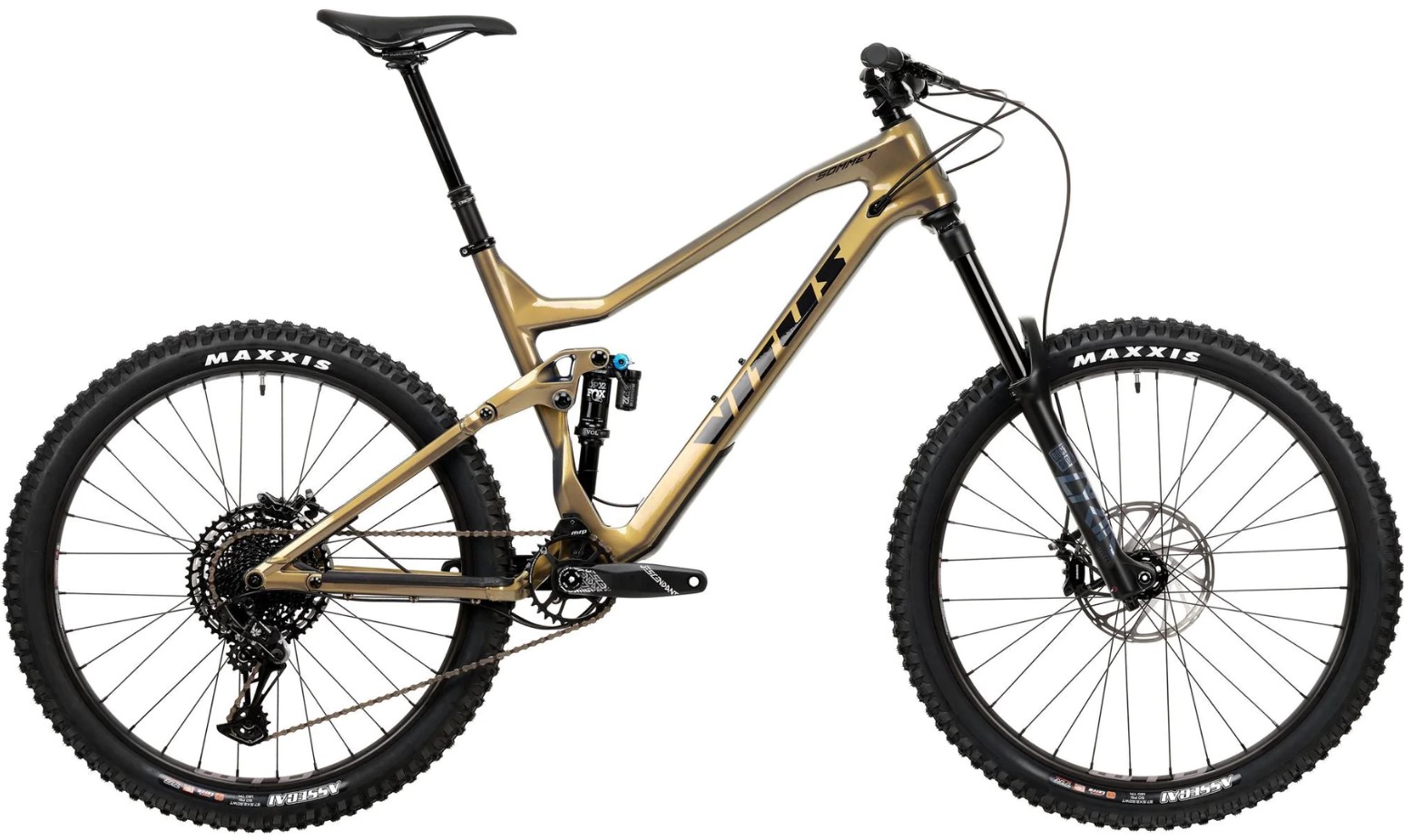

2020 VITUS Sommet 27 CRS
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 27.5 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 33 |
| SHOCK SIZE | 205 x 65,T |
| TRAVEL MM | 160 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | HORST FOUR BAR (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.46 |
| STARTING LEVERAGE | 3.02 |
| SAG POINT LEVERAGE | 2.73 |
| ENDING LEVERAGE | 2.23 |
| PROGRESSION % | 26.2 |

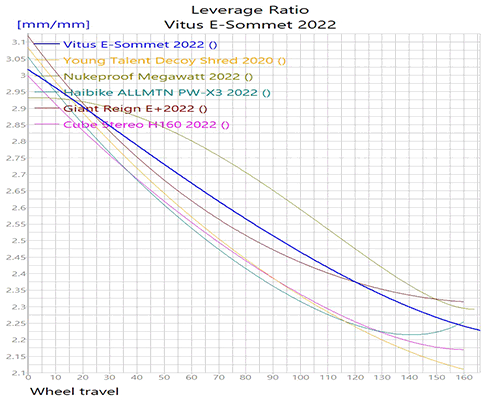

| LEVERAGE CURVE | PL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PL |
| OEM SHOCK | FOX FLOAT DPX2 |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX DHX |
| UPGRADE OPTION | ROCKSHOX MY23 COIL SUPER DELUXE |
| SUGGESTED SHOCK SPRING | 300,350,400,450,500,550, |
| HEAD TUBE ANGLE | 66.0 |
| RECOMMENDED FORK TRAVEL | 170 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX ZEB HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | Fox 38 HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,45,45,50,55, |
| COMMENTS | Aluminum rear, adjustable flip chip |
| COMMENTS |
