2020 COMMENCAL Supreme DH V3
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 27.5 or 29 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 39 |
| SHOCK SIZE | 250 x 75 |
| TRAVEL MM | 200 |
| UPPER REDUCER | 20.0 x 8.0 |
| LOWER REDUCER | 30.0 x 10.0 |
| LINKAGE | FOUR BAR (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.67 |
| STARTING LEVERAGE | 3.05 |
| SAG POINT LEVERAGE | 2.8 |
| ENDING LEVERAGE | 2.45 |
| PROGRESSION % | 19.67 |

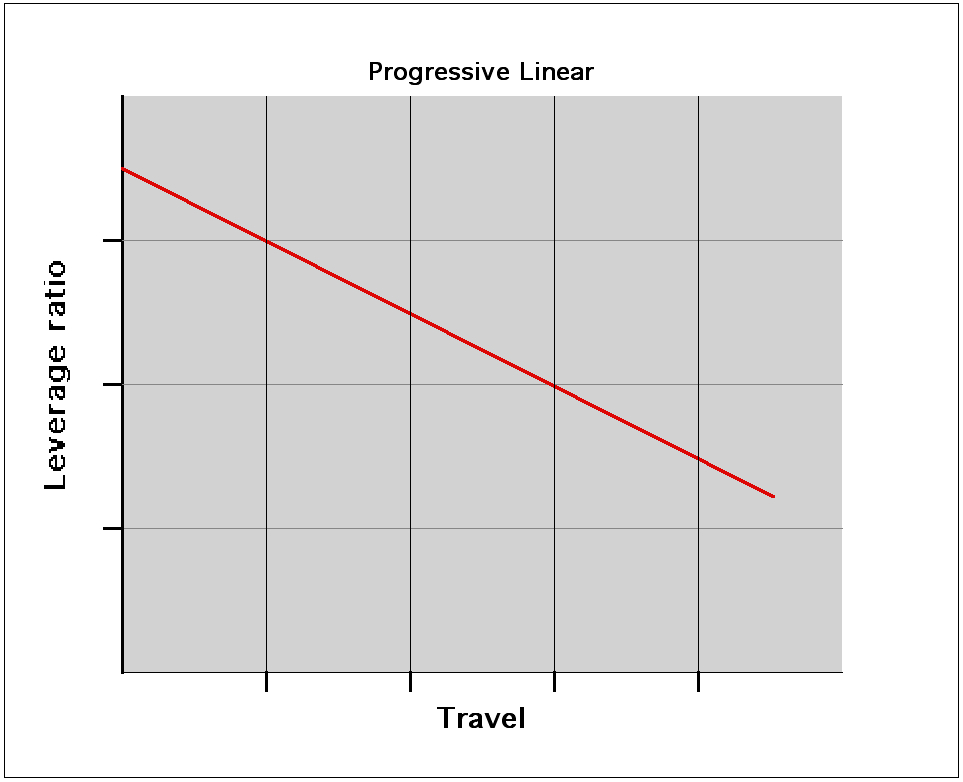

| LEVERAGE CURVE | PL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PL |
| OEM SHOCK | ROCKSHOX SUPER DELUXE |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX DHX |
| SUGGESTED SHOCK SPRING | 350,350,400,450,500,550, |
| HEAD TUBE ANGLE | 63.0 |
| RECOMMENDED FORK TRAVEL | 203 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | Fox 40 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX BOXXER HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 30,30,35,40,40,45, |
| COMMENTS | 2018-2020, 19%, high single pivot, but with rocker linkage and with idler gear |
| COMMENTS | claimed 200 mm |
